Frequency Sweep Results Menu Options

Navigate to the Frequency Sweep Results menu:

1. Click Results.
2. From the SIwave area, select Frequency Sweep > [Simulation Name].

Menu options include:

• Export to Electronics Desktop post-processor – exports the solution to Ansys Electronics Desktop and opens it there.
• View Profile – opens the simulation profile.
• View Simulation Properties – opens the Simulation Properties window on the Freq. Sweep tab.
• View Coupled Structures – displays coupled structures in the Modeling workspace.
• Rename Solution – allows you to rename the solution.
• Delete Solution – deletes the solution.

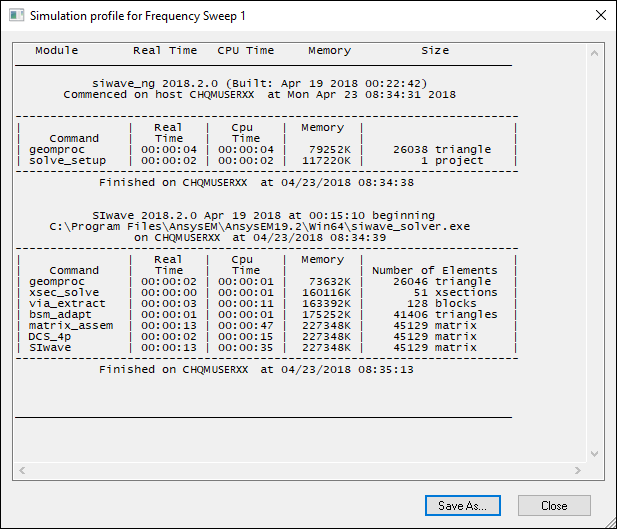

Simulation Profile:

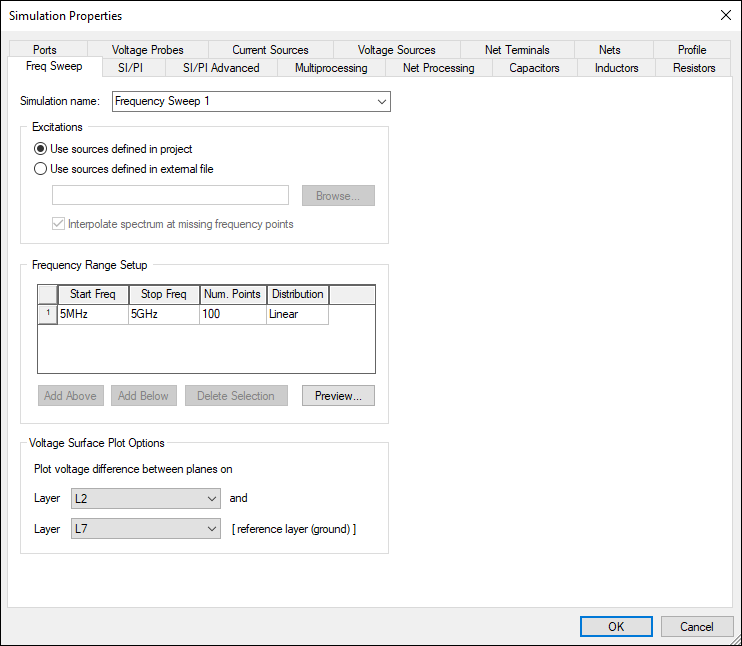

Simulation Properties:

From this menu, you can also view frequency sweep results or export a frequency sweep animation.
