Scripting in Workbench

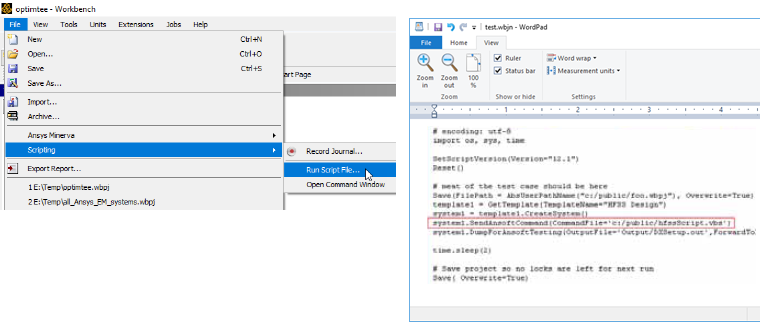

Scripts that include Ansys Electromagnetics projects can be recorded and played back via Workbench.
When a WB journal is run from the command line, a beta feature allows the AnsysEDT portion to also run in batch mode: i.e, when using RunWB2 -B (In prior releases, a significant portion of recorded journal would error out requesting interactive mode playback). To use this beta feature, set the following environment variable before running the script.
From a Windows Command prompt, for instance,
Set ANSYSEM_FEATURE_SF6694_NON_GRAPHICAL_COMMAND_EXECUTION_ENABLE=1
RunWB2 -B -R myReplayJournal.wbjn
