Creating an Outer Shaded Pole Core

This core is used only as an outer core. There is no DiaYoke parameter in this UDP, so to create an outer shaded pole core, set both InfoCore and Info Term values to be 0. You can set the values either when creating the core or after creating it, as described in Creating a Band and Creating an Outer Region, respectively.

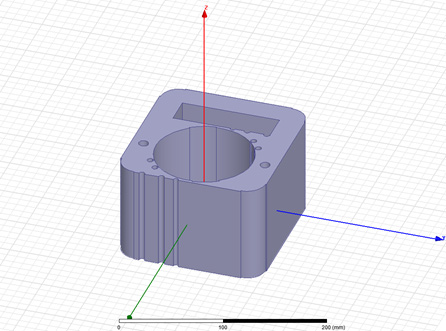

An example of the core for a ShadedPoleCore2 is shown in the following figure.
