Creating a Band

Maxwell provides you with a .dll file to define the parameters of a band.

  1. Click Draw > User Defined Primitive > RMxprt > Band.

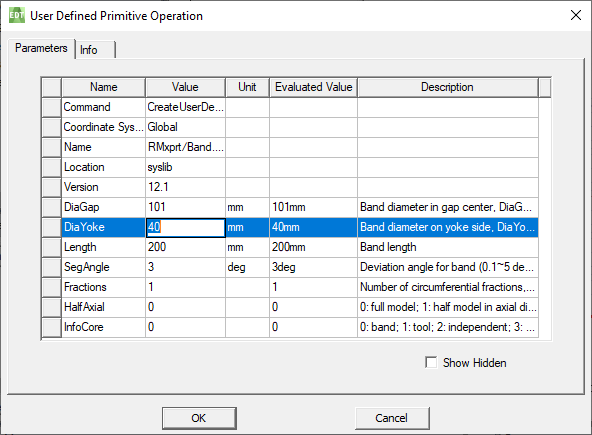

    2. The User Defined Primitive Operation dialog box appears.

    The Parameters tab permits you to see and edit the parameters. An Info tab contains information about the user defined primitive, its purpose, the company/author who created it, the date created and the version number.

  2. Specify the values for the parameters.
  3. Click OK.
