Creating an Inner or Outer PM Core
Set the value of DiaYoke and DiaGap as DiaYoke < DiaGap to create inner cores or DiaGap < DiaYoke for outer cores. In addition, r to create an outer core, the Pole Type must be 1 or 2. You can set the values either when creating the core or after creating it, as described in Creating a Band and Creating an Outer Region, respectively.
Set the InfoCore value to 0.
An inner PM core and an outer PM core are shown in Inner PM core with PoleType set to 5 (InfoCore set to 0) and Outer PM core with PoleType set to 2 (InfoCore set to 0), respectively.

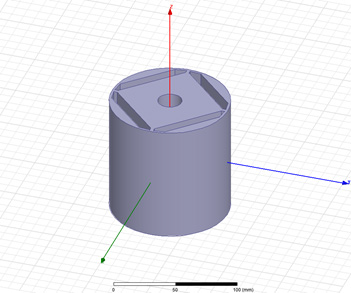

Inner PM core with PoleType set to 5 (InfoCore set to 0)
