Creating a Magnet (PM Core)

You can create a magnet of a PM core manually by setting the value of InfoCore to 2. An example is shown in the following figure.

You can assign the value of this property either when creating a PM core or after creating it, as described in Creating a Band and Creating an Outer Region, respectively.

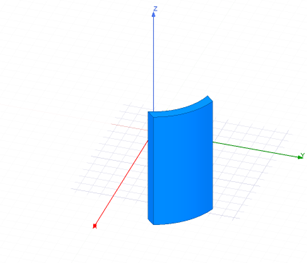

A magnet of PM Core
