Creating a Magnet (Claw Pole)

To create a magnet, you need to set the value of LengthMag larger than 0 (by default, it is 0) and value of InfoCore to be 3. An example is shown in the following figure.

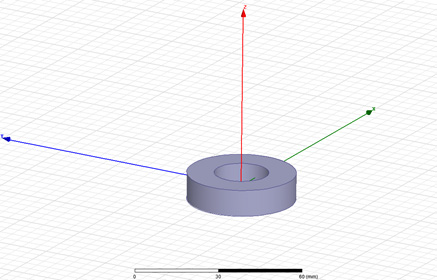

A magnet of ClawPoleCore

The following figure visualizes the LengthMag parameter.

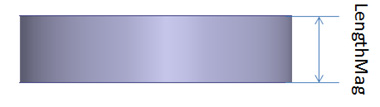

LengthMag of a magnet of ClawPoleCore

You can assign the value of these properties either when creating a claw-pole core or after creating it, as described in Creating a Band and Creating an Outer Region, respectively.
