Setting Project Options

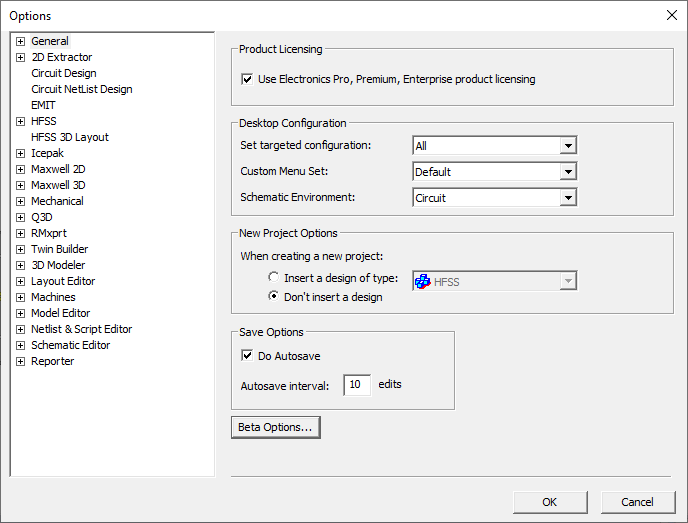

Tools > Options > General Options opens the Options window.

The left pane provides access to the following sets of options:

• General
• 2D Extractor
• Circuit Design
• Mechanical
• RMxprt
• Twin Builder
• 3D Modeler
• Machines
• Model Editor
• Reporter

Use Tools > HPC and Analysis Options to specify active configuration per design type, queuing, distributed memory vendor, HPC licensing, select a MPI vendor, and whether to enable GPU for transient solves.

The Tools > Options > Export Options Files command writes xml files containing the Options settings at all levels to the specified directory. The Tools > Options > Export Options feature is intended to make it easier for different users to use Ansys Electromagnetics tools installed on shared directories or network drives. The Example Uses for Export Options Features section outlines some use cases enabled by this feature.
