Introduction to Meshing in HFSS 3D Layout

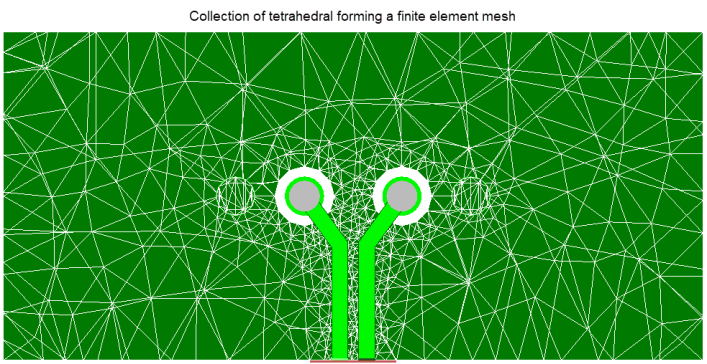

The geometric model is automatically divided into a number of tetrahedra. The collection of tetrahedra forms the finite element mesh.

The partial differential equations that govern the behavior of the electromagnetic fields form an accurate mathematical model. The partial differential equations are Maxwell’s Equations, valid everywhere in the three-dimensional space. The finite element formulation uses sophisticated mathematical techniques to satisfy the partial differential equations in the geometrical model, which represents some device or system of interest.
