Pin groups are groups of pins created for various components. Each pin group is treated as if it is electrically connected during analysis. You can connect circuit elements (e.g., ports, sources, RLCs) to any generated pin groups.
Pin groups are listed in the Components window. You can select a pin group or a pin in a group by clicking on the entity in the Components window.

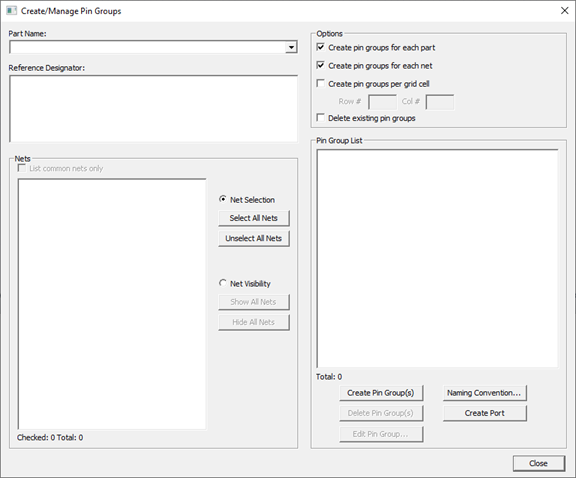

Most of a pin group's configuration is in the Create/Manage Pin Groups window.
