Editing a Pin Group

The only changes that can be made to a pin group is to remove member pins. Also rename a pin group in the Components window.

1. Click Draw > Create/Manage Pin Groups to open the Create/Manage Pin Groups window.



2. Select the chosen pin group on the Pin Group List area.

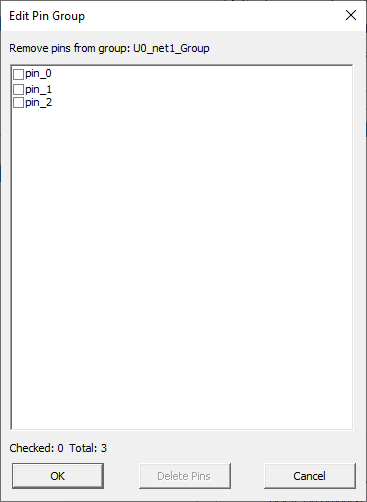

3. Click Edit Pin Group to open the Pin Group Editor window.



4. Select unwanted pins and click Delete Pins to remove them on the group.

5. Click OK to close the window.

6. Click Close.
