Renaming Matrix Data

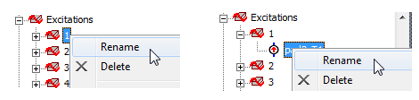

In the project tree, you can right-click a port excitation to rename it.

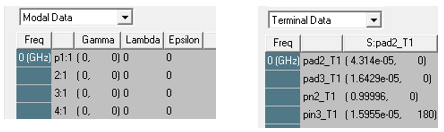

When you rename a port excitation, the associated Matrix data is reordered so that it can be presented in the same manner. The reordering is done to match the tree-sort order presented for the ports (renamed matrix data is reordered so that alphabetic values appear before numeric values).

Exports of the matrix data are ordered in the same manner. This reordering is conducted as part of post processing and does not force a re-solve.
