Response Curve (2D Slices)

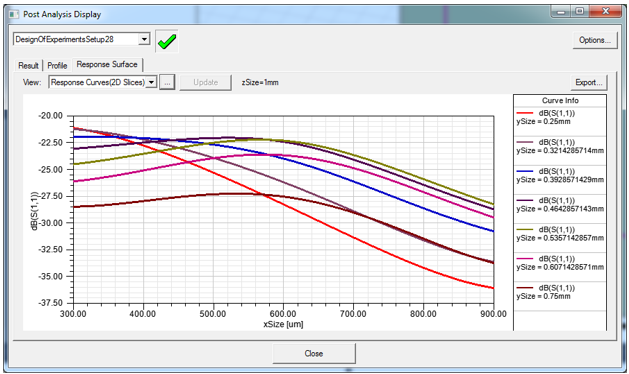

If you have included more than one variable in the setup, the Response Curves (2D) view is available:

Clicking the ellipsis button [...] by the View for Response Surface opens a dialog that lets you adjust the variables selected and the values applied.

Tuning a Response Curve

For the X Axis and Y Axis, you can specify a Resolution, and the variable to use.  For the Z Axis you can select the Cost or calculation. For variables not selected for the X and Y axis, a slider is enabled that lets you adjust the value to see the effect on the response curve plot. You can enable or disable Real time mode by using the check box at the lower left.

Full Range Axis check box

When it is checked all Axes are set to their maximum ranges, and the ranges won’t be changed while tuning unless you change the axis variable.

When it is unchecked, the Y(2D)/Z(3D) axis range is auto updated to fit the curve/surface.

Exporting Response Curve Data

You can Export the response curve data as a table in the following formats:

• Comma delimited data files, (*.csv)
• Tab delimited data files, (*.tab)
• Ansys Plot data files, (*.dat)
• Post Processor format data files, (*.txt)
• Ansys Report Data *.rdat files

Exported files can be imported into a report.
