User Defined Model (UDM)

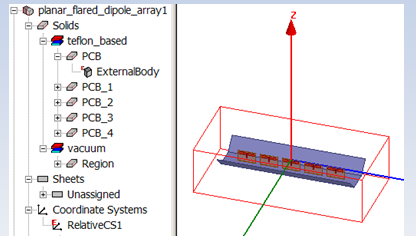

A User Defined Model (UDM) is collection of externally defined parts imported into an Ansys EM 3D Modeler or created using a C or Python script.

• UDM includes part attributes (like name, color etc) and material assignment
• UDM can also have external coordinate systems and corresponding planes
• UDM parts can be parameterized and manipulated in Ansys EM modeler just like any other part

UDM can either represent Static geometry models or

• Dynamic links to models of external geometry editors
• Used for supporting CAD integration in WorkBench

UDM uses same plugin technology as User Defined Part (UDP)

See the following sections:

UDM compared to User Defined Primitives

Insert UDM Command on Draw Menu

UDM Properties

Library of Models for CAD Integration

Ansys EM to Ansys Geometry Transfer

Material Assignment Transfer

Geometry Transfer through Ansys DesignModeler (DM)

CAD Integration Functionality

See the HFSS Scripting Guide for information about Creating User Defined Primitives and User Defined Models in Python Scripts.
