Geometry Transfer through Ansys DesignModeler (DM)

It is possible to edit geometry in Ansys DesignModeler (DM) before consuming it in Mechanical. This is useful when geometry requires pre-processing for Ansys simulation.

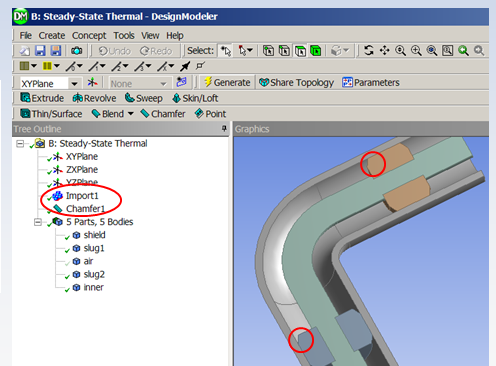

Consider an HFSS model linked to DM through the Workbench. In the following example, a chamfer operation on geometries is being imported.
