Library of Models for CAD Integration
UDM technology allows a library of models

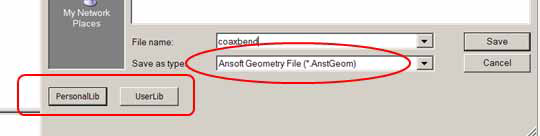

- Any Ansys EM model can be exported as 'Ansoft
Geometry File'

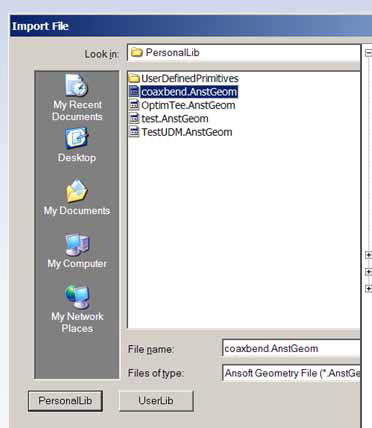

- An Ansoft Geometry File can be imported back as a
UDM.
- Any Design/project variables associated with model
are brought in as UDM parameters.

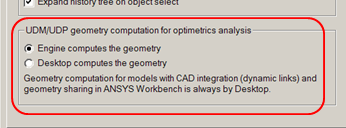

Geometry computation for UDM (and also UDP) can be specified in the Modeler options as either done on.
- Engine side (default):
Requires deployment of UDM on each node
- Desktop side:
UDM need not be deployed on each engine
Desktop will be busy during parametric analysis
