3D Components in the History Tree

Although Group Commands do not work with 3D components, you can group all instance of a components by the component definition in the History tree.

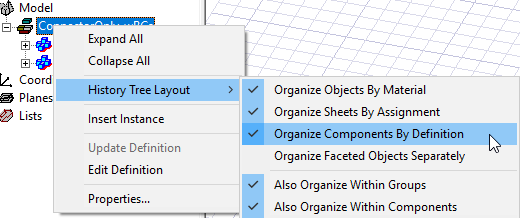

To disable this grouping by instance, right-click an instance, and unselect History Tree Layout>Organize Components by Definition.

This causes the display to show numbered instances listed without the icon for the primary component.

Component Operations in the History Tree

• Component operations appear under that component folder toward the end.


• Component operations acts on parts as well as CS.
• Boundaries, mesh operations are duplicated with duplicate and copy/paste operation.
