Layout Editor View Menu

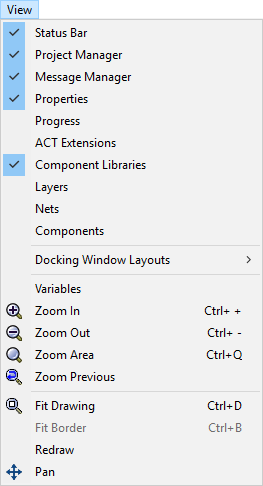

When the Layout Editor is active in the design area, the View menu appears similar to the following:

In addition to the options available on the Basic View Menu, the Layout Editor View Menu contains the following:

• Zoom In / Zoom Out / Zoom Area / Zoom Previous – control the portion of the design displayed in the design area.
• Fit Drawing – changes the display so that the entire drawing fits to the edges of the design area.
• Fit Border – when a border has been added to a drawing, scales the bordered contents to fit within the bounds of the window.
• Redraw – redraws the current design.
• Pan – allows you to pan across the drawing.

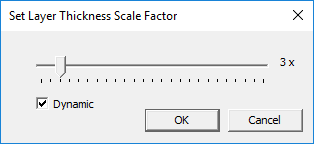

• Stretch Z – opens the Set Layer Thickness Scale Factor window, allowing you to change layer thickness.



• Reset Orientation – restores the design area to its default view.
• Faster Transformations – offers a simplified model during rotate, zoom, and pan operations to speed up performance.

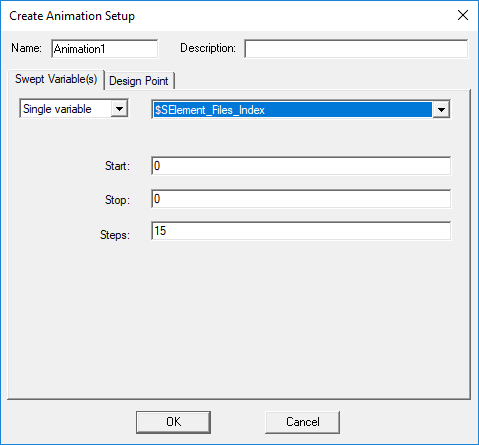

• Animate – opens the Create Animation Setup window, so that you can begin creating animations.



• Clip Plane – places a 3D coordinate system manipulator in the design area so that you can define clip planes.

See: Layout Editor.
