Basic View Menu

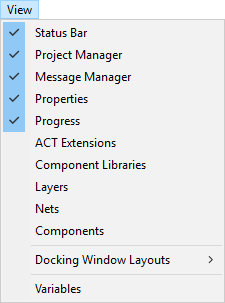

When no editor is open in the design area, or when the Netlist Editor or Report Window is active, the View menu appears similar to the following:

• The check boxes toggle the display of the Status Bar, Message Manager Window, Project Manager, Properties Window, and Progress Window. You can enable the display of Component Libraries, Layers, Nets, Components and Variables windows.
• The ACT Extensions command opens the ACT Extensions window, which lets you work with ACT integration tools. For more information, see the ACT Extensions Window section.
Note:

The ACT Extensions window and the design wizards it contains (5G Wizard, HFSS Antenna Design Toolkit, HFSS-EMA3D Link, and Maxwell Eccentricities) are only available for the Windows version of the Ansys Electronics Desktop software. These items are not available when the software is installed on a Linux platform.

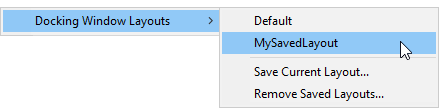

• The Docking Window Layouts submenu lets you select from the Default and any saved window layouts, Save Current Layout, or Remove Saved Layouts by selecting them from a list.



• The Variables option opens the Project and Design Variables window, allowing you to set variables.
