Creating a New Spectrum

To create a new spectrum on the Spectra Configuration window:

1. Click New to open the New window.



2. Use the drop-down menu to select an existing spectrum type (Normalized Current, Square Wave, or Pulse CMOS), or select User-defined to import settings.
3. Click OK to open the Input window.



4. Name the new spectrum and click OK.

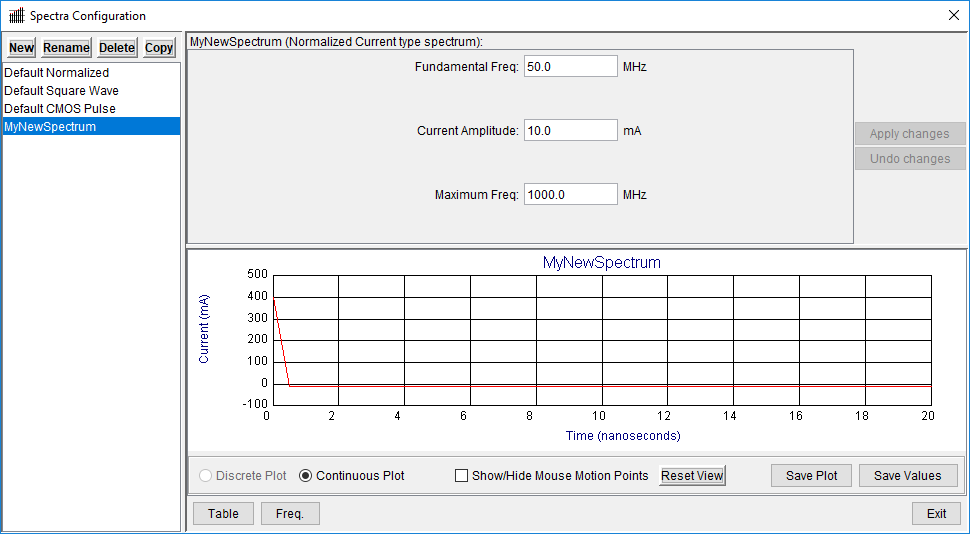

   The new spectrum appears in the left pane, and its settings and plot appear to the right.



   Note:

   Configurable settings vary based on the type of spectrum you selected previously.

5. Enter the applicable settings and click Apply Changes.
6. Click Exit to return to the EMI Scanner window.
