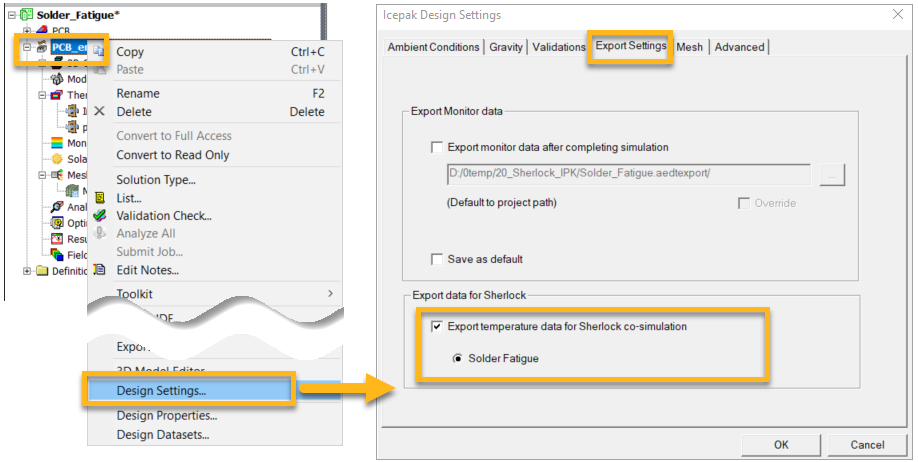

Following the steps illustrated below, enable the option Export temperature data for Sherlock co-simulation.

This option will export the .tmap file to the export folder. The Sherlock application uses the file to map temperature distribution on the PCB. It ensures that the geometrical position of the PCB is identical in both the Sherlock and Icepak applications.
