Design Table

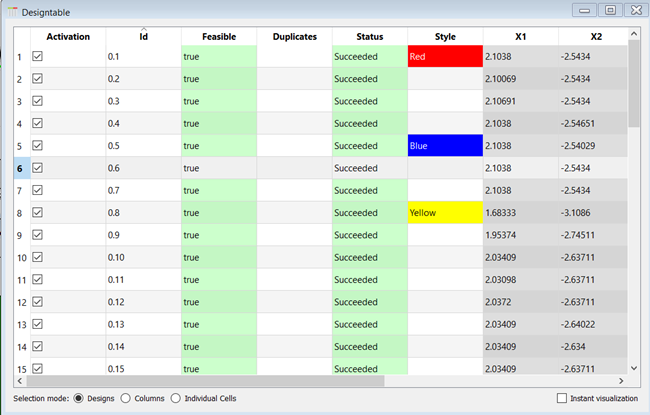

This table contains the numerical data and status information of all visualized designs of the current postprocessing. Additional style information is also provided. Select or deselect a design by clicking the table row. To activate or deactivate the design, select or clear the check box in the Activation cell. You can also activate/deactivate and style the design using the context menu. To sort the table columns, click the column headers.

You can select the following options below the design table.

  • Selection mode: Set how you select information in the design table.

    • Designs (select a row)

    • Columns

    • Individual Cells

  • Instant visualization: Displays visual information of the selected values. A graphical and a textual representation is available by switching the tab of the visualization widget. Multiple values can be visualized simultaneously.

Settings
OptionDescription
Common Settings
Show deactivated designsWhen selected, shows previously deactivated designs. When cleared, only activated designs are displayed.
Preferences

The following preference settings are available:

  • Window appearance

For more details, see Plot Preference Settings.

Python Scripting

Create Visual

Creates a design table using data with data_id.

    design_table = Visuals.DesignTable(Id("Design table"), data_id)

Add to Postprocessing

Adds design table in postprocessing to control_container, using the specified relative positioning.

    control_container.add_control (
        design_table,
        True,
        RELATIVE_POSITIONING,
        0., 0., 1., 1./2.
    )
