The Stacker: Mesh Volume operation creates volume mesh from the base face with number of divisions along the defined edges.

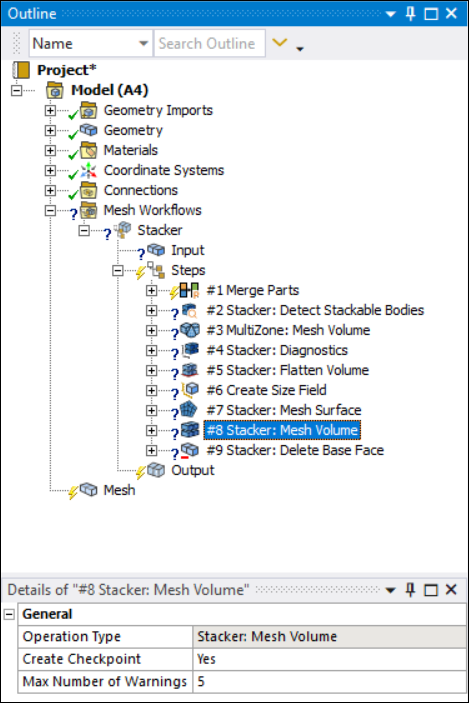

The Operation Type is Stacker: Mesh Volume. Stacker: Mesh Volume has the following controls:
![]() |
Object Properties
The Details Pane properties for this object include the following.
Category | Properties/Options/Descriptions |
---|---|
General |
Operation Type: Displays the operation type for the selected mesh workflow step. Create Checkpoint: Creates checkpoint for the control and saves the current operation when Create Checkpoint is Yes. Max Number of Warnings: Allows you to provide the maximum number of warnings that can be displayed for the selected operation type. The default value is 5. |
Tree Dependencies
Valid Parent Tree Object: Mesh Workflows, Stacker.
Insertion Options
Use any of the following methods for inserting Stacker: Mesh Volume.
Right-click Model and click Insert > Mesh Workflows Select the Mesh Workflow Type.
Click Model. In the Model Context tab, under the Mesh group, click Mesh Workflows. Select the Mesh Workflow Type.
Right-click Mesh and click Insert > Mesh Workflows. Select the Mesh Workflow Type.
Click Mesh. In the Mesh Context tab, under the Mesh Workflow group, click Mesh Workflows. Select the Mesh Workflow Type.
Right-click Options
In addition to common right-click options, relevant right-click options for this object include: Availability is dependent on the selected object.
Insert > Number of Divisions on Edges: Allows you to add Number of Divisions on Edges control in the mesh workflow.
Delete: Allows you to delete the Stacker: Mesh Volume step. You can delete an operation only when the mesh workflow is not complete.
Execute Up To Step: Executes the Stacker: Mesh Volume step for the specified mesh workflow.
Rename: Allows you to rename the Stacker: Mesh Volume step.
Revert To Step: Allows you to revert to the Stacker: Mesh Volume step when checkpoint is enabled. When you perform Revert To Step after completing the workflow, the output generated is automatically cleared and reverted to the Stacker: Mesh Volume step.
API Reference
See the Mesh Workflows section of the ACT API Reference Guide for specific scripting information.
