The Boundary Collision Statistics module enables the collection of boundary-related collision data, such as collision frequency, intensities, and impact velocities.

MODULE OPTIONS

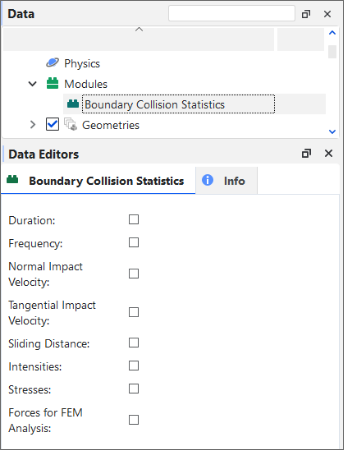

Figure 3.225: Options in the Data Editors panel when the Boundary Collision Statistics Module is enabled

When the Boundary Collision Statistics Module is enabled (Figure 1), you are able to select any of the following Properties:

After processing your simulation, specific Properties and Curves for the options you enabled will be available for the boundaries in your simulation.

What would you like to do next?

The Contacts Energy Spectra module enables the collection of different kinds of energy statistics per contact pair (particle group and/or geometry) and size, which can help you predict breakage and attrition rates for continuous processes such as grinding mills.

MODULES OPTIONS

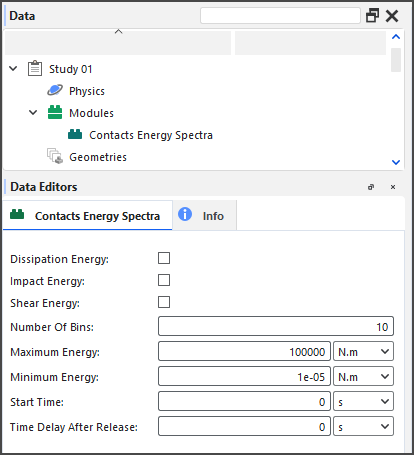

Figure 3.226: Options in the Data Editors panel when the Contacts Energy Spectra Module is enabled

When the Contacts Energy Spectra Module is enabled (Figure 1), you can choose to collect one or more of three different types of collision energy-Dissipation Energy, Impact Energy, and/or Shear Energy-and define the limits for how the energy data is collected.

In this version of Rocky, you can also choose which particle group and geometry component you want to participate in energy spectra collection.

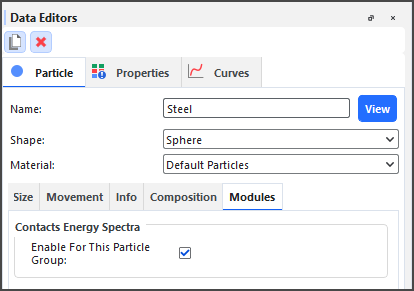

Figure 3.227: Additional module options for Particle groups when the Contacts Energy Spectra module is enabled

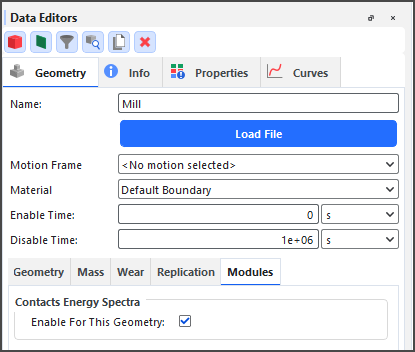

Figure 3.228: Additional module options for a geometry component when the Contacts Energy Spectra module is enabled

After processing your simulation, you can plot the resulting energy curves (Dissipation, Impact, and/or Shear) for each pair of particle-to-particle or particle-to-geometry contact types, each generated by the power, cumulative power, and collisions rate.

What would you like to do next?

When enabled, the Contacts Overlap Monitor module checks each contact pair (particle-particle or particle-boundary) for the amount that they overlapped-the percentage of which is determined by the size of the smallest particle in the contact pair-and then raises a warning in the Simulation Log panel (Figure 1) if an overlap exceeds any of the three warning levels you define (Figure 2).

Figure 3.229: Example Contacts overlap message on the Simulation Log panel

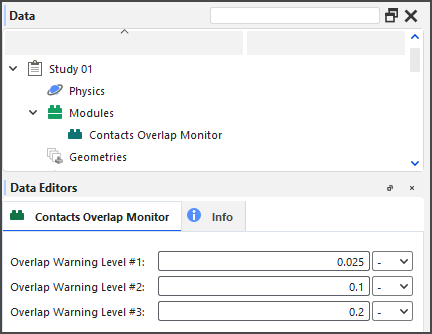

Figure 3.230: Options in the Data Editors panel when the Contacts Overlap Monitor Module is enabled

Monitoring your contacts for overlaps is important because Rocky uses the overlap value in order to compute collision forces. Therefore, large overlap values can lead to serious stability and accuracy issues in a simulation.

What would you like to do next?

See Also:

The CFD Coupling Particle Statistics Module enables the collection of particle-fluid interactions, such as drag, lift, and virtual mass forces.

MODULE OPTIONS

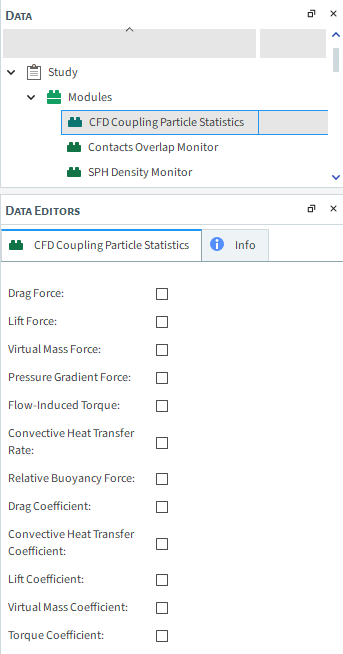

Figure 3.231: Options in the Data Editors panel when the CFD Coupling Particle Statistics Module is enabled

When the CFD Coupling Particle Statistics Module is enabled (Figure 1), you are able to select any of the following Properties:

After processing your simulation, specific Properties for the options you enabled will be available for the particles in your CFD Coupling simulation.

What would you like to do next?

The Inter-group Collision Statistics module enables the collection of collisions data for each particle-particle and particle-boundary pair group.

MODULE OPTIONS

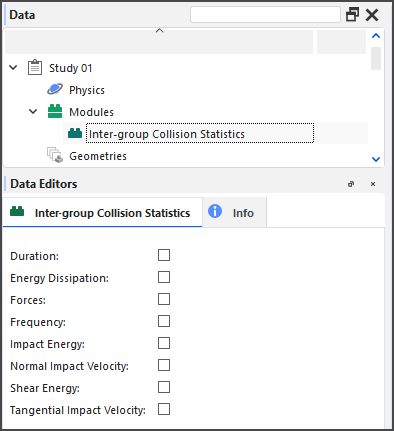

Figure 3.232: Options in the Data Editors panel when the Inter-group Collision Statistics Module is enabled

When the Inter-group Collision Statistics Module is enabled, you are able to select the following Properties:

In this version of Rocky, you can also choose which particle group (Figure 2) and geometry component (Figure 3) you want to participate in these collections.

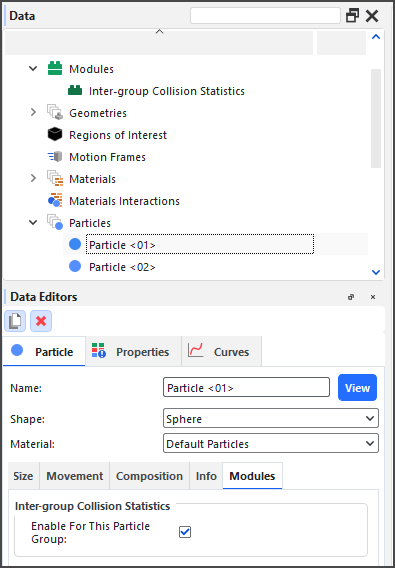

Figure 3.233: Additional module options for Particle groups when the Inter-group Collision Statistics module is enabled

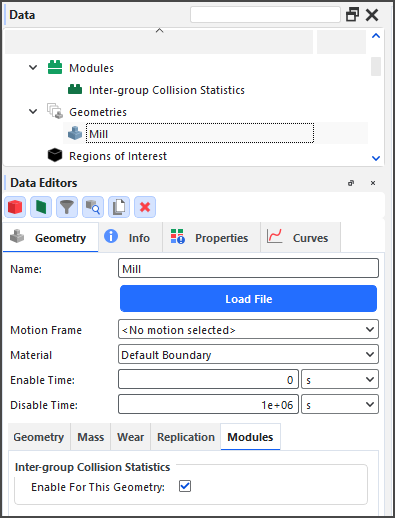

Figure 3.234: Additional module options for a geometry component when the Inter-group Collision Statistics module is enabled

After processing your simulation, specific Curves for the options you enabled will be available for the main Particles entity.

What would you like to do next?

The Inter-particle Collision Statistics module enables the collection of collisions effects upon individual particles resulting from interactions with other particles and boundaries.

MODULE OPTIONS

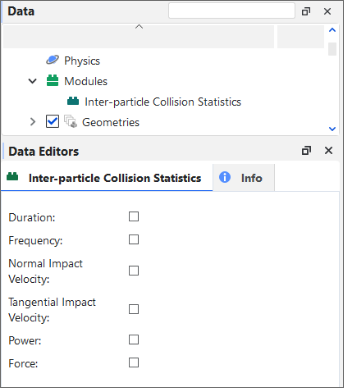

Figure 3.235: Options in the Data Editors panel when the Inter-particle Collision Statistics Module is enabled

When the Inter-particle Collision Statistics Module is enabled, you are able to select any of the following Properties:

After processing your simulation, specific Properties and Curves for the options you enabled will be available for the main Particles entity.

What would you like to do next?

The Intra-particle Collision Statistics module enables the particle-related collision data affecting the surfaces of a Particle set.

MODULE OPTIONS

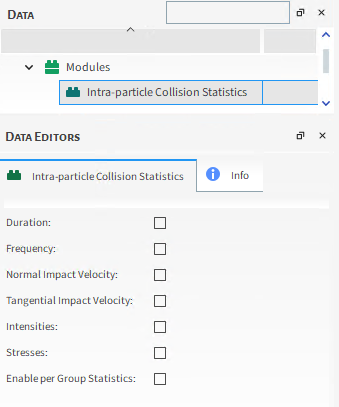

Figure 3.236: Options in the Data Editors panel when the Intra-particle Collision Statistics Module is enabled

When the Intra-particle Collision Statistics Module is enabled, you are able to select any of the following Properties:

After processing your simulation, specific Properties for the options you enabled will be available for each individual Particle set. You can then choose to display this information graphically on the surface of a representative particle in the Particles Details window

What would you like to do next?

The Multibody Dynamics FMU Coupling Module enables you to import FMU files into Rocky without needing to install external Rocky modules into compatible softwares.

MODULE OPTIONS

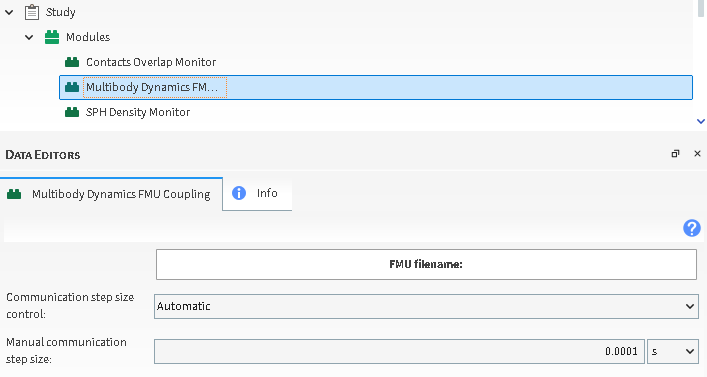

Figure 3.237: Options in the Data Editors panel when the Multibody Dynamics FMU Coupling is enabled

When the Multibody Dynamics FMU Coupling Module is enabled, you are able to import a FMU file through the FMU filename: button, and select the following properties:

See Also

The Joint Statistics module enables new joint properties, with the purpose of generating new statistics data for analysis, such as Stresses and Forces and Torques calculations.

MODULE OPTIONS

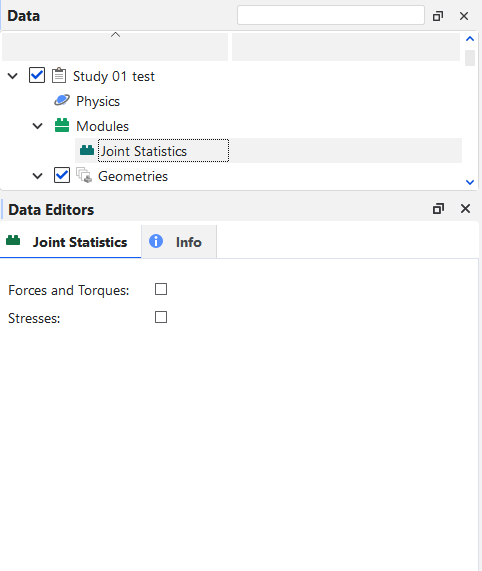

Figure 3.238: Options in the Data Editors panel when the Joint Statistics Module is enabled

When the Joint Statistics Module is enabled (Figure 1), you are able to select any of the following Properties:

This way, in the post-processing phase, it is possible to visualize the results of the parameters selected in Joints properties.

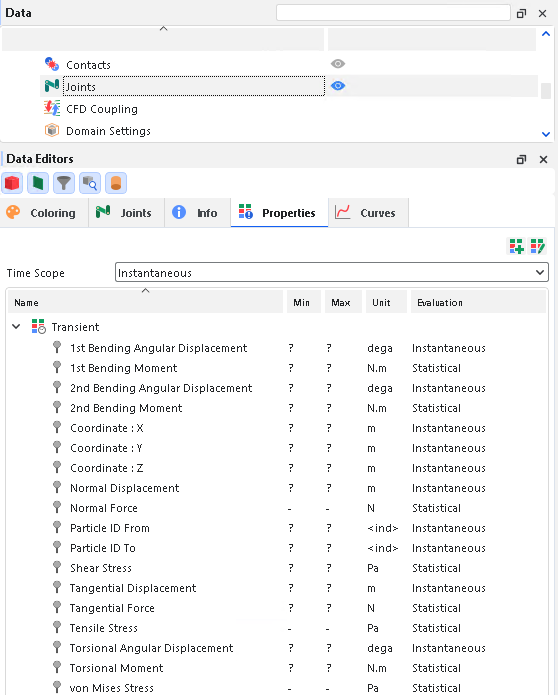

Figure 3.239: Statistic data in joint properties

See Also

The Particle Instantaneous Energies module enables the collection of energies data related to the velocities and positions of each particle in the simulation. This data can then be used to calculate the kinetic and potential energies of each individual particle, which can be useful when performing global or partial energy balances in a simulation.

MODULE OPTIONS

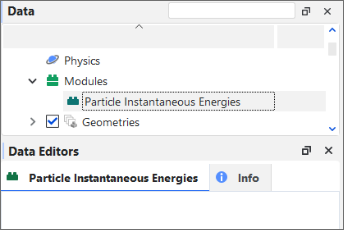

Figure 3.240: There are no options in the Data Editors panel when the Particle Instantaneous Energies Module is enabled

When the Particle Instantaneous Energies Module is enabled, there are no properties or settings to enable.

After processing your simulation, specific Properties for the options you enabled will be available for the main Particles entity.

What would you like to do next?

The Particles Energy Spectra module enables the collection of different kinds of energy statistics per particle type and size category, which can help predict breakage and attrition rates for continuous processes such as grinding mills.

MODULE OPTIONS

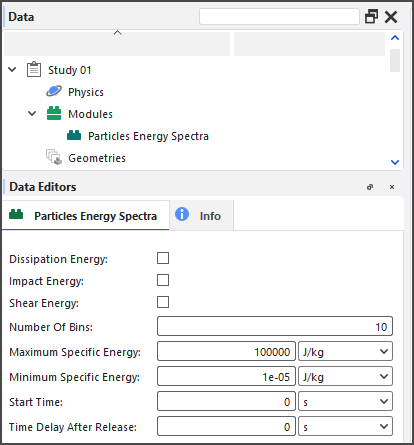

Figure 3.241: Options in the Data Editors panel when the Particles Energy Spectra Module is enabled

When the Particles Energy Spectra module is enabled (Figure 1), you can choose to collect one or more of three different types of collision energy-Dissipation Energy, Impact Energy, and/or Shear Energy-and define the limits for how the energy data is collected.

In this version of Rocky, you can also choose which particle group (Figure 2) you want to participate in energy spectra collection.

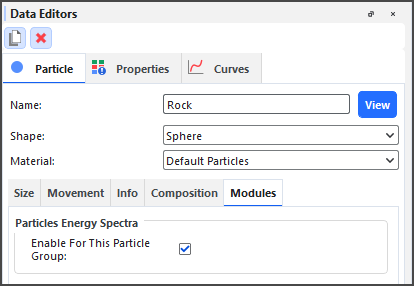

Figure 3.242: Additional module options for Particle groups when the Particles Energy Spectra module is enabled

After processing your simulation, you can plot the resulting Cumulative Specific Power curves for the type of energy you collected (Dissipation, Impact, and/or Shear) for each particle set, generated by each size of the particle size distribution, and separated by Specific Energy.

What would you like to do next?

The SPH Mass Flow Rate module is a flow meter that acts by calculating the SPH mass flow rate through a surface, enabling you to choose where you want to measure the mass flow rate.

MODULE OPTIONS

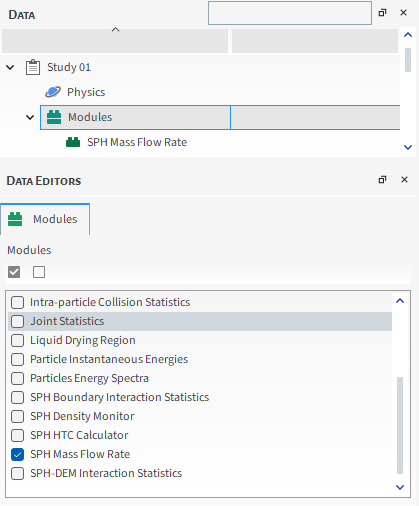

Figure 3.243: Options in the Data Editors panel when the SPH Mass Flow Rate Module is enabled

When the SPH Mass flow Rate Module is enabled (Figure 1), you are able to select one or more surfaces present in the simulation and measure the mass flow rate through them.

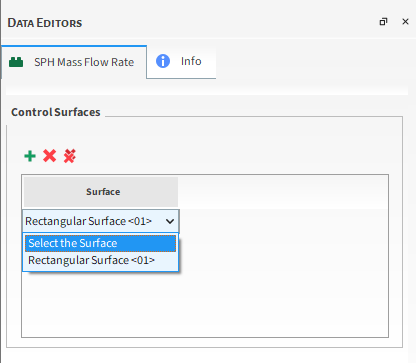

Figure 3.244: Geometries options in the Data Editors panel when the SPH Mass Flow Rate Module is enabled

After processing your simulation, specific mass flow rate curves will be available for the surfaces you selected through the module.

What would you like to do next?

The SPH Boundary Interaction Statistics Module enables a collection of SPH boundary-related data, separated into Boundary Properties, where SPH forces are divided into triangles and the nodal force is collected, and Boundary Curves where the collected value refers to the entire geometry.

MODULE OPTIONS

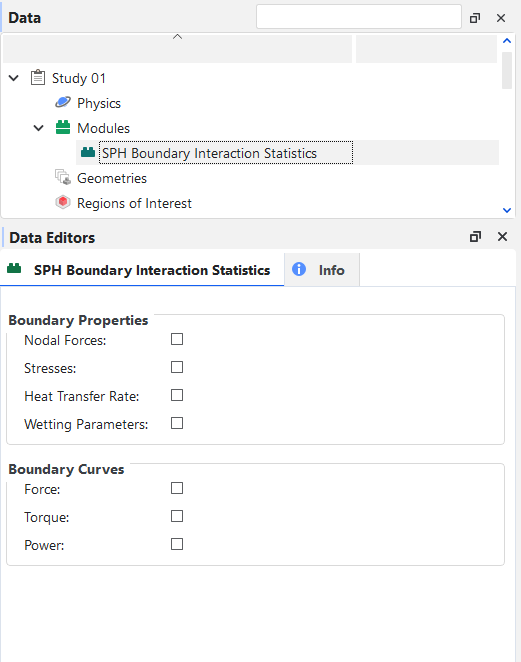

Figure 3.245: Options in the Data Editors panel when the SPH Boundary Interaction Statistics Module is enabled

When the SPH Boundary Interaction Statistics Module is enabled (Figure 1), you are able to select any of the following parameters:

Boundary Properties

The Stresses parameter calculates the time average of the stresses on the triangle. If there is no motion and the Cartesian forces are already stored, stresses are calculated with them, otherwise, normal and tangential components of the forces are stored.

The Heat transfer rate parameter calculates the time average of the heat transferred between the fluid and the triangle (positive if the transfer is triangle->fluid, negative otherwise). The Wetting parameters calculates the time average of the ratio between the wet area (approximate) and the triangle area.

Boundary Curves

After processing your simulation, specific data based on the options you enabled will be available in Walls Properties or Curves. As you can see in the figures below:

Walls-Properties

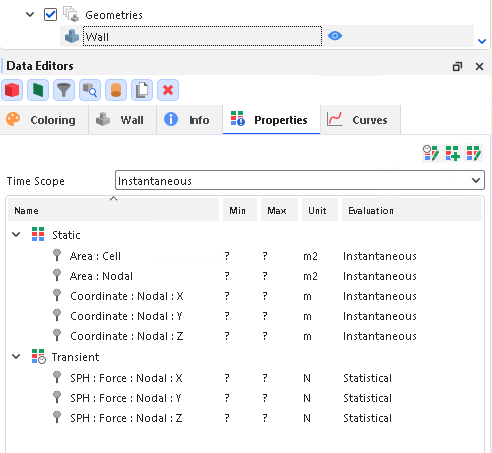

Figure 3.246: Results in Walls Properties when the SPH Boundary Interaction Statistics Module is enabled

Walls-Curves

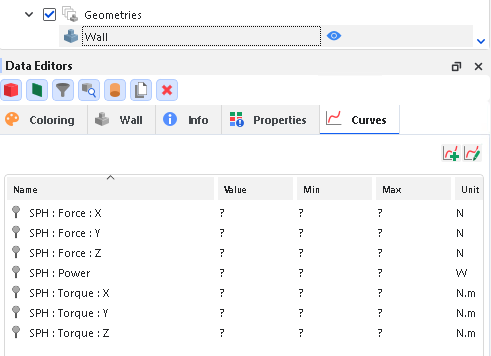

Figure 3.247: Results in Walls Curves when the SPH Boundary Interaction Statistics Module is enabled

What would you like to do next?

The SPH Density Monitor Module enables the monitoring of density values of the SPH elements during a simulation.

MODULE OPTIONS

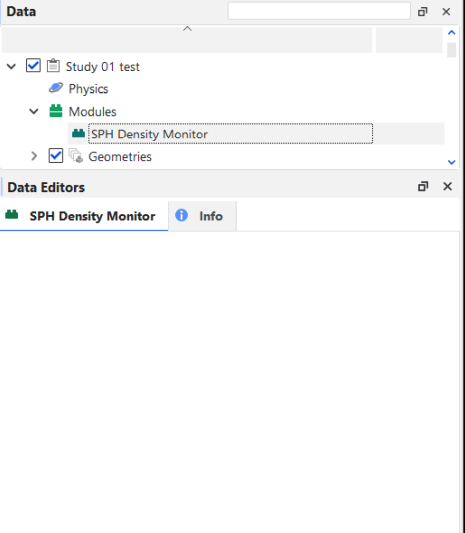

Figure 3.248: Options in the Data Editors panel when the SPH Density Monitor Module is enabled

During the simulation, if the module detects that the density values were clipped due the existence of positive or negative deviations that exceeded the maximum allowed values, it will issue a warning, indicating the percentage of SPH elements that had density values clipped. These Warnings are registered in the log file and can be consulted later.

See the example in the figure below:

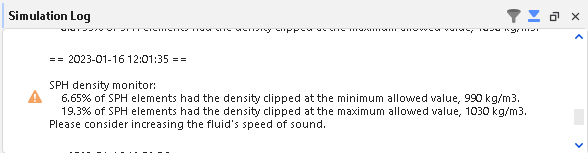

Figure 3.249: Simulation Log example when the SPH Density Monitor Module is enabled

What would you like to do next?

The SPH HTC Calculator module calculates the heat transfer coefficient (HTC) through forced convection for each wall triangle. It provides an estimation of heat exchange without requiring a thermal solution.

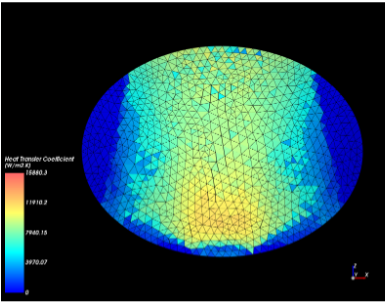

Figure 3.250: Example application of heat transfer estimation using the SPH HTC Calculator module.

The heat transfer coefficient is calculated using simple correlations based on local Reynolds and Prandtl numbers. The correlations used for computing the Nusselt number depend on whether the flow is laminar or turbulent, as determined by the user-defined threshold.

Limitations

Listed below are known limitations of the SPH HTC Calculator module:

Module Options

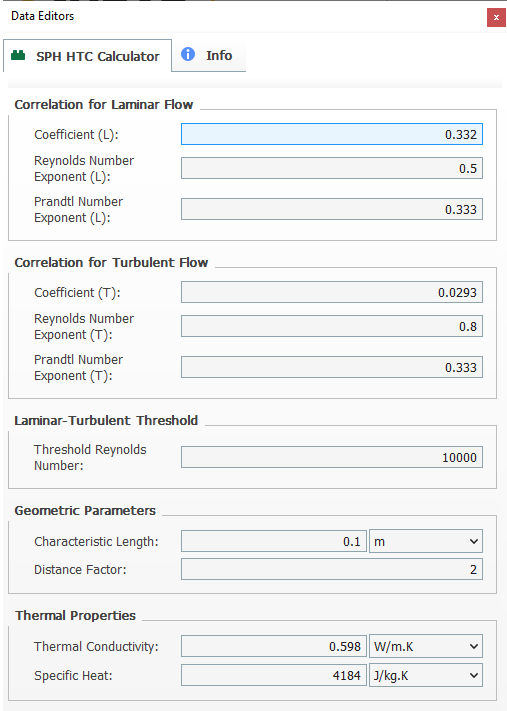

Figure 3.251: SPH HTC Calculator module options.

Refer to Figure 3.251: SPH HTC Calculator module options. and the parameter definitions below to understand how to enable and configure the SPH HTC Calculator module. These parameters are explained below:

Post-processing abilities

After simulating, a new Heat Transfer Coefficient property becomes available for wall entities. This property aids in visualizing heat exchange between the SPH fluid and each wall.

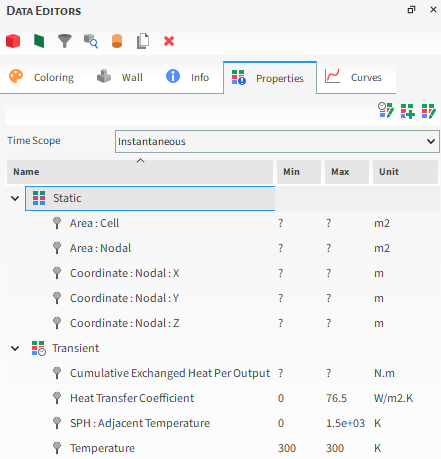

Figure 3.252: New wall properties are shown in the Data Editors panel when the SPH HTC Calculator module is enabled.

These new properties are explained below:

Heat Transfer Coefficient: This provides the heat transfer coefficient for each wall triangle.

SPH: Adjacent Temperature This provides the SPH adjacent temperature for each wall triangle. When coupling with mechanical this average adjacent temperature is sent to mechanical.

You can analyze these properties in a plot or histogram window. Alternatively, you can graphically display these properties in a 3D View window.

Setting up and using the module

The SPH-DEM Interaction Statistics Module enables the calculation of interaction between particles and fluids within the simulation.

MODULE OPTIONS

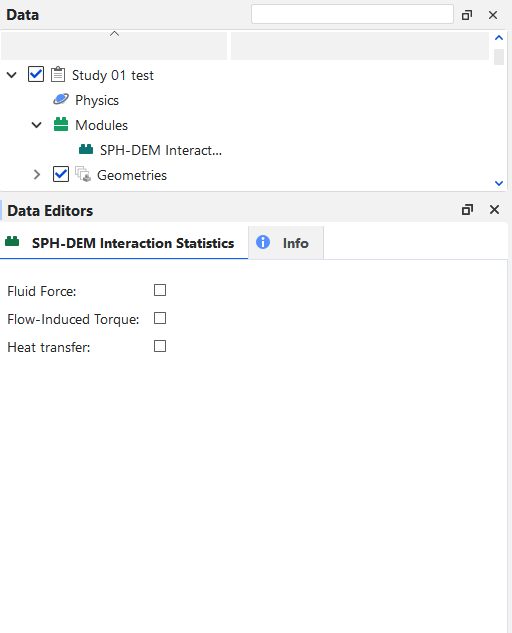

Figure 3.253: Options in the Data Editors panel when the SPH DEM Interaction Statistics Module is enabled

When the SPH-DEM Interaction Statistics Module is enabled (Figure 1), you are able to select any of the following Properties:

Important: To Heat Transfers option works, it's necessary that the Enable Thermal checkbox in Physics is selected. Otherwise, an error message will appear.

After processing your simulation, specific SPH Properties will appear along with the Particle parameters for the options you enabled before starting your simulation. You can see some of this properties below:
