: Display or hide the coordinate system axis.

A coordinate system axis is displayed by default in the bottom left corner of the graphics window for a better 3D orientation.

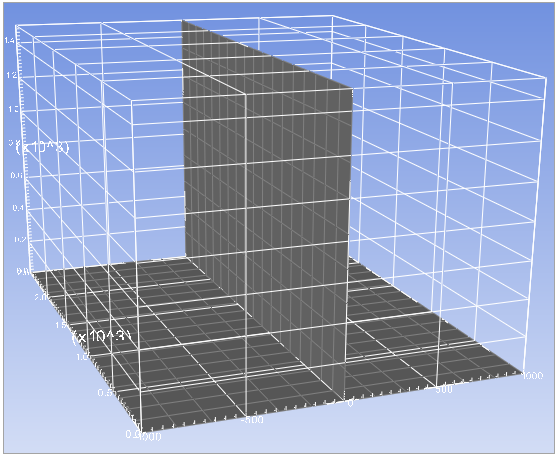

 : Plot box with coordinate system.

Figure 1.33: Enclosed Box and Coordinate System

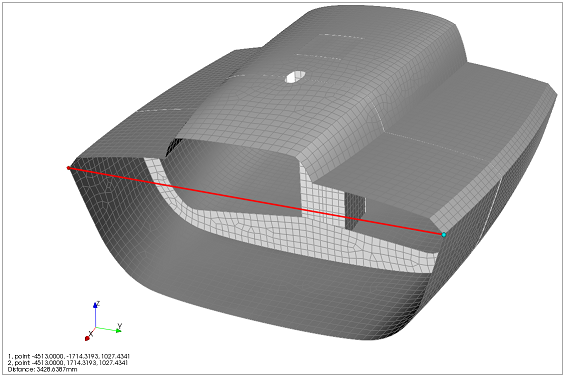

 : Distance measure tool. Select two points of the mesh and the distance and point coordinates will be displayed in the bottom left.

Figure 1.34: Distance Measure Tool
