Like Frequency Response results, Phase Response results plot the minimum, average, or maximum Stress, Strain, or Deformation for selected graphical entities (vertex, face, edge, or nodes) or a Named Selection. However, unlike Frequency Response plots that show a response amplitude over a frequency range, Phase Response plots show a response over a phase period, so you can determine how much a response lags behind the applied load.
Generally speaking, you would look at Frequency Response plots at critical regions to ascertain what the frequency of interest may be. In conjunction with Phase Response plots, the phase of interest is also determined. Then, you can request Stress, Strain, or Deformation contour plots to evaluate the response of the entire structure at that frequency and phase of interest.

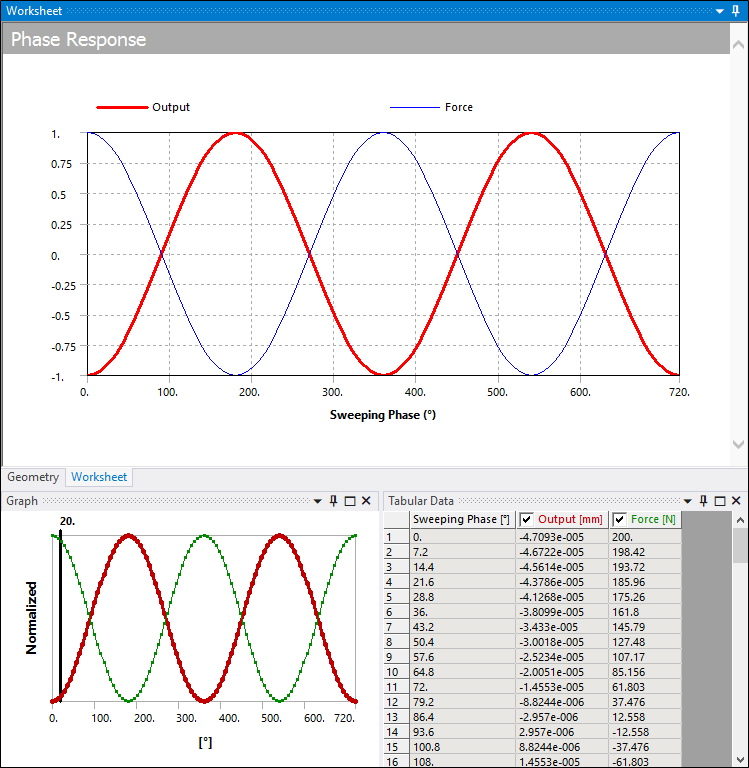

Phase Response Example Plot
Go to a section topic:
Result Options
To insert Phase Response results, use the Solution object context tab menu, or you can right-click the Solution object, or an existing result object, and select > . Options include:
Scoping
These results support the following scoping options:
Geometry selection (vertex, face, or edge)
Mesh selection: Nodes for all result options. For the Stress and Strain results, Element and Element Face selection is supported when the On Demand Expansion (Analysis Settings > Options) property is set to .
Named Selections. Named Selections support the above geometry and mesh selections.
Limitations
For a Mode Superposition Harmonic Response analysis (standalone or linked), if the Store Results At All Frequencies property in the Options category of the Analysis Settings is set to , the Phase Response results can be scoped to geometric entities only (node-based scoping is not allowed).
Result Calculations
The following functions outline the relationships of response amplitude, phase response graphs, and result contours (with associated caveats):
- Response Amplitude
Response Amplitude is defined as the maximum value of the following expression:
value = sqrt(real*real + imag*imag)Where real and imag represent all real and imaginary result values from the result file for the selected frequency.
- Phase Response Graph

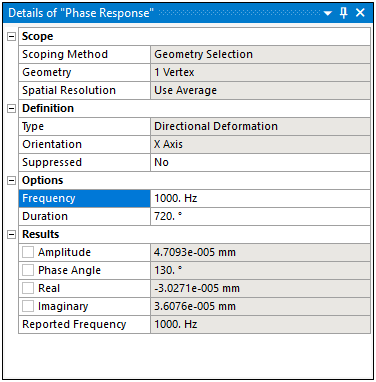

Phase Response results report the following quantities at the nearest frequency requested from the Frequency property.
For the properties contained in the Results category:
Amplitude = sqrt(real*real + imag*imag)Phase Angle =
Real = real Imaginary = imag And the graph is the image of the following, where Sweeping Phase is allowed to vary across a user specified Duration:
value = Amplitude * cos( phase)Where: phase = (Phase Angle + Sweeping Phase) Note: Take caution when comparing the values in the Output column of the Tabular Data for a Phase Response against maximum values of contour displays.
- Result Contour
To draw result contours in a Harmonic Response analysis, the application uses the phase you specify in the Sweeping Phase property to evaluate the expression:
value = real*cos(phase) - imag*sin(phase)Where real and imag represent all real and imaginary result values from the result file for the selected frequency.
Because the formula for the Phase Response graph differs from the formula for the contour, an Output value for the graph does not necessarily equal a maximum for a contour result at the same frequency.
