The Motion system performs Multibody Dynamic (MBD) Analysis, a means of analyzing the dynamic behavior of a system of interconnected bodies.
This system is configured in Ansys Mechanical, using the Ansys Motion solver to compute the solution.
To work through a Motion system:
To add a Motion analysis system, drag the system from the Toolbox to the Project Schematic or double-click the system in the Toolbox.
To load the geometry, right-click the Geometry cell and select or from the context menu.
To view the geometry, right-click the Model cell and select from the context menu or double-click the Model cell.
Alternatively, you can complete this step using the Setup cell.
In the Mechanical application window, complete your analysis using the application's tools and features.
For information on standard Mechanical features, see Using Standard Mechanical Features. For Motion specific features, see Define Motion Specific Features.

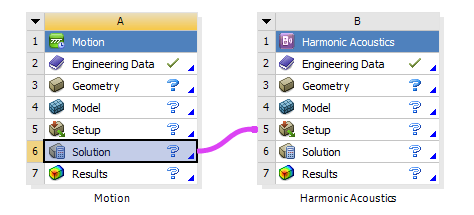

To connect the Ansys Motion system to a Harmonic Acoustics system:
Drag the Harmonic Acoustics system from the Toolbox to the Project Schematic.
Drag the Solution cell of the Motion system onto the Setup cell of the Harmonic Acoustics system.
