The losses due to bearing friction can be reported in the post processor.

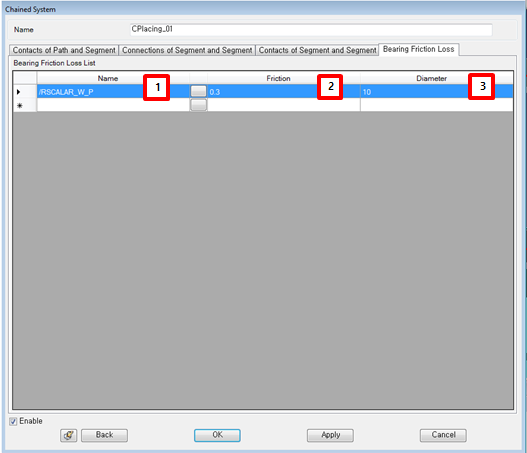

Figure 12.102: Bearing Friction Loss Tab
| Parameter | Description |
| 1. Name | Use to define a bearing component which is defined by the revolute joint, the rotational scalar, or bushing. The rotational axis should be defined as the z-axis of the base marker. |
| 2. Friction | Use to set the friction coefficient. |
| 3. Diameter | Use to set the diameter to calculate tangential velocity. |
