As shown in the table below, you can create a File Generation Entity through several steps.

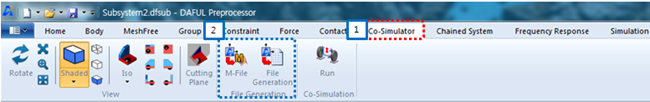

Figure 11.3: Steps to create a File Generation Entity
| Step | Operation |
| 1st step | Select on the ribbon menu as shown in the figure above. |
| 2nd step | Select one of the file generation entities as shown in the figure above. |
| 3rd step | Follow the prescribed creation steps for each file generation entity as shown in the table below. |
As shown in the table above, you can create a File Generation Entity through several steps. The creation steps for each File Generation Entity are shown in the table below.
Figure 11.4: Creation methods of file generation entities
| Type | Creation method |
| M-File | Key in a name or default name ->Apply |
| File Generation | Key in a name or default name ->Apply |
Remarks
Before creating a File Generation Entity, co-simulation variables such as S-Input or S-Output must be created.
