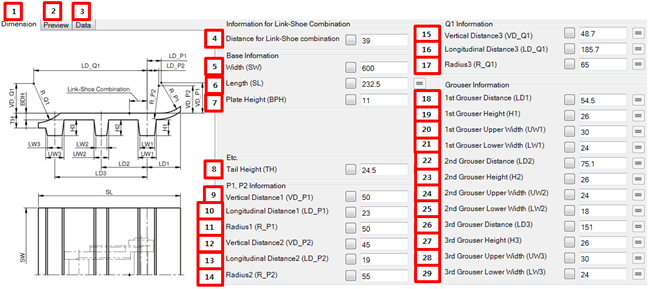

Figure 12.65: Profile tab in the Triple Shoe property dialog
| Parameter | Symbol | Description | Dimension (Range) |
| 1. Dimension | N/A | This is figure to help understanding what to mean parameter. | N/A |
| 2. Preview | N/A | This displays a shape of shoe. | N/A |
| 3. Data | N/A | This displays a shape data of shoe. | N/A |
| 4. Distance for Link-Shoe combination | N/A | This is signature for combination link with shoe. After creation link and shoe, user must move link or shoe as different value. |
Length (Real>0.0) |
| 5. Width | SW | Use to set the width of shoe |
Length (Real>0.0) |
| 6. Length | SL | Use to set the length of shoe |
Length (Real>0.0) |
| 7. Plate Height | BPH | Use to set the height of bed plate |
Length (Real>0.0) |
| 8. Tail Height | TH | Use to the height of tail |
Length (Real≥0.0) |
| 9. Vertical Distance1 | VD_P1 | Use to set the vertical distance1 |
Length (Real>0.0) |
| 10. Longitudinal Distance1 | LD_P1 | Use to set the longitudinal distance1 |
Length (Real>0.0) |
| 11. Radius1 | R_P1 | Use to set the radius1 |
Length (Real>0.0) |
| 12. Vertical Distance2 | VD_P2 | Use to set the vertical distance2 |
Length (Real>0.0) |
| 13. Longitudinal Distance2 | LD_P2 | Use to set the longitudinal distance2 |
Length (Real>0.0) |
| 14. Radius2 | R_P2 | Use to set the radius2 |
Length (Real>0.0) |
| 15. Vertical Distance3 | VD_Q1 | Use to set the vertical distance3 |
Length (Real>0.0) |
| 16. Longitudinal Distance3 | LD_Q1 | Use to set the longitudinal distance3 |
Length (Real>0.0) |
| 17. Radius3 | R_Q1 | Use to set the radius3 |
Length (Real>0.0) |
| 18. 1st Grouser Distance | LD1 | Use to set the distance from tip of shoe to center of 1st grouser. |
Length (Real>0.0) |
| 19. 1st Grouser Deight | H1 | Use to set the height of 1st grouser. |
Length (Real>0.0) |
| 20. 1st Grouser Upper Width | UW1 | Use to set the upper width of 1st grouser. |
Length (Real>0.0) |
| 21. 1st Grouser Lower Width | LW1 | Use to set the lower width of 1st grouser. |
Length (Real>0.0) |
| 22. 2nd Grouser Distance | LD2 | Use to set the distance from tip of shoe to center of 2nd grouser. |
Length (Real>0.0) |
| 23. 2nd Grouser Height | H2 | Use to set the height of 2nd grouser. |
Length (Real>0.0) |
| 24. 2nd Grouser Upper Width | UW2 | Use to set the upper width of 2nd grouser. |
Length (Real>0.0) |
| 25. 2nd Grouser Lower Width | LW2 | Use to set the lower width of 2nd grouser. |
Length (Real>0.0) |
| 26. 3rd Grouser Distance | LD3 | Use to set the distance from tip of shoe to center of 3rd grouser. |
Length (Real>0.0) |
| 27. 3rd Grouser Height | H3 | Use to set the height of 3rd grouser. |
Length (Real>0.0) |
| 28. 3rd Grouser Upper Width | UW3 | Use to set the upper width of 3rd grouser. |
Length (Real>0.0) |
| 29. 3rd Grouser Lower Width | LW3 | Use to set the lower width of 3rd grouser. |
Length (Real>0.0) |
