As shown in the figure below, properties such as Name, Formula, Enable can be defined in the S-Output sub-entity window. General Sub-Entity Properties have been introduced in Figure 8.18: General properties of sub-entity pages and toolbar and the special properties are shown in the table below.

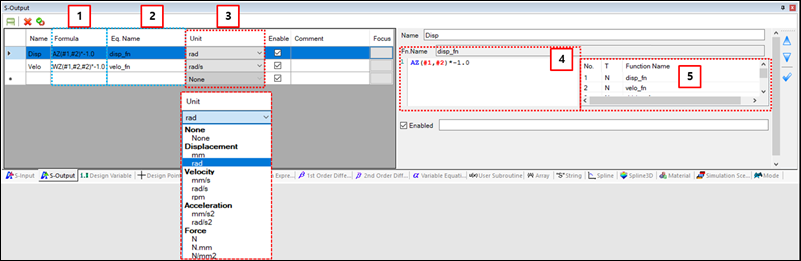

Figure 8.101: S-Output properties
| Parameter | Symbol | Description | Dimension (Range) |
| 1. Formula | N/A | Use to display the user-defined formulation in the formula window. | N/A |
| 2. Eq. Name | N/A | Use to display the name of the formulation which is defined by selecting a Function Expression. | N/A |
| 3. Unit | N/A | Use to set the unit of the S-Output. There are 5 types of the unit - , , , and . The unit is based on the subsystem unit. | N/A |
| 4. Formula window | N/A | Use to define the formulation. For a Function Expression, the formulation can be expressed with constant values, several operators, arguments, and Intrinsic Functions in a User Subroutine. For more information, see the Formula Window of a Function Expression. | N/A |
| 5. List window | N/A | Use to show the list of functions. You can set the formula for the equation by selecting one of functions in the list. | N/A |
