12.2.6. Creation of Sprocket and Rollers for Links (Track)

The Sprocket and Rollers can be created in a subsystem and part file that has the Path property.

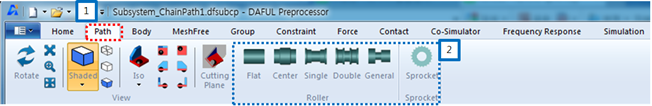

Figure 12.12: Sprocket and Roller entities from the ribbon menu

Sprocket and Roller entities from the ribbon menu

Figure 12.13: Steps to create Sprocket or Roller entities

StepDescription
1st stepSelect Path from the ribbon menu.
2nd stepSelect Sprocket or one of the Roller types.
