5.6.2. Operation

Only curves plotted in the time domain are available for analysis in Ansys Sound: Analysis and Specification, but multiple curves can be exported at once. Data is interpolated, if necessary, to ensure the same time-step.

To launch the Ansys Sound: Analysis and Specification interface from the Motion Postprocessor:

  1. Select the required curve in Chart view.

  2. Click Ansys Sound on the Analysis ribbon menu.

    This launches the Ansys Sound: Analysis and Specification application.

  3. Select the required signal from the Ansys Sound: Analysis and Specification dialog (see below).

    Figure 5.32: Selecting the curves for analysis in Ansys Sound: Analysis and Specification

    Selecting the curves for analysis in Ansys Sound: Analysis and Specification

  4. Click OK.

  5. In Ansys Sound: Analysis and Specification click Calculation > Calculate time-frequency representation (see below).

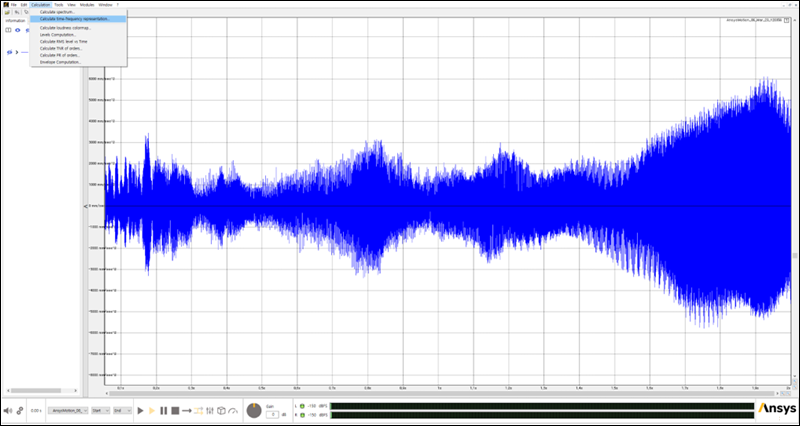

    Figure 5.33: Signal displayed in Ansys Sound: Analysis and Specification

    Signal displayed in Ansys Sound: Analysis and Specification

  6. Confirm the parameters in the Time-frequency representation calculation dialog and click OK.

    The time-frequency representation is displayed. See Order Analysis in the Ansys Sound: Analysis and Specification User's Guide for more information.

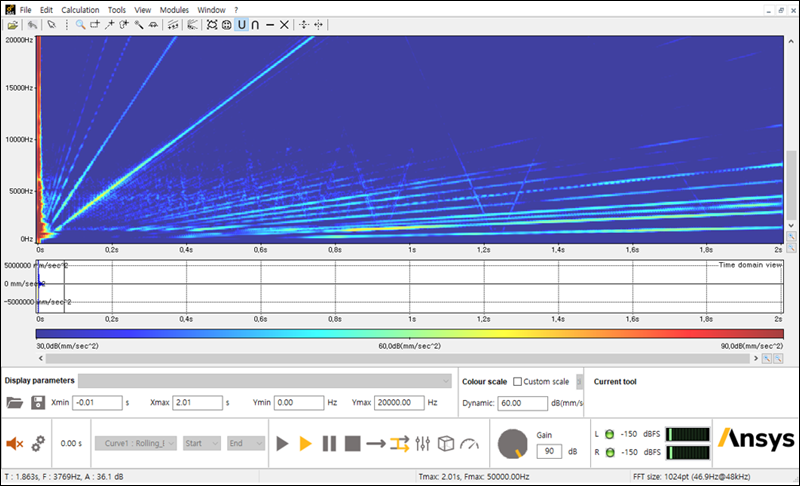

    Figure 5.34: Order analysis in Ansys Sound: Analysis and Specification

    Order analysis in Ansys Sound: Analysis and Specification
