After time domain analysis, SAS receives dynamic results from Motion. With these results, Ansys Sound: Analysis and Specification analyzes the sound characteristic of the modeled product.

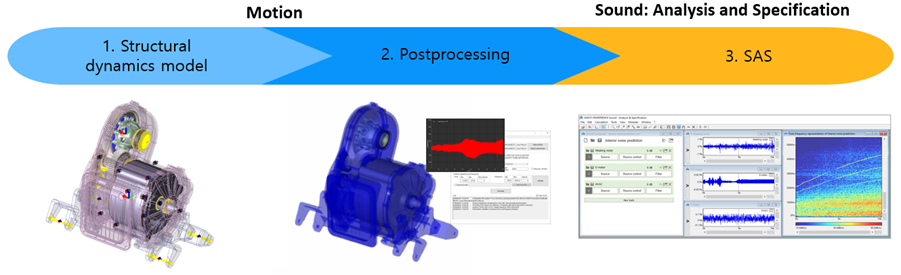

These workflow steps can involve the following:
- Structural dynamics model
Excitation (for example, by gears or EM force)
Flexibility
Motion
- Postprocessing
Sound pressure measurement
Kinematic results (such as displacement, velocity, or acceleration on surface)
- SAS
Setting acoustic parameters
Simulation
