Run bracket_implicit.k using DOUBLE precision LS-DYNA.

Launch LS-PrePost.

Select File > Open > Binary Plot.

Open \implicit\d3plot.

Hold the Ctrl key and use the left mouse button to rotate the model to a suitable viewing angle.

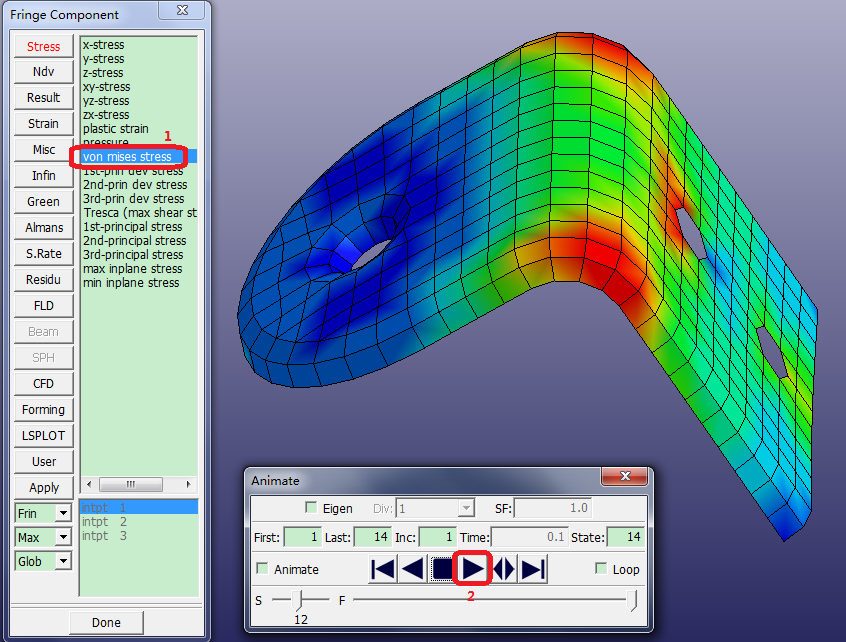

Select FEM > Post > Fringe Component.

Select von mises stress from the list.

Click the Play button in the bottom panel.

Note the stress contour that develops due to the prescribed displacement load.
