3.6. Add Masses

  1. Click the Top render button.

  2. Click Zoin to zoom in on right end of rail.

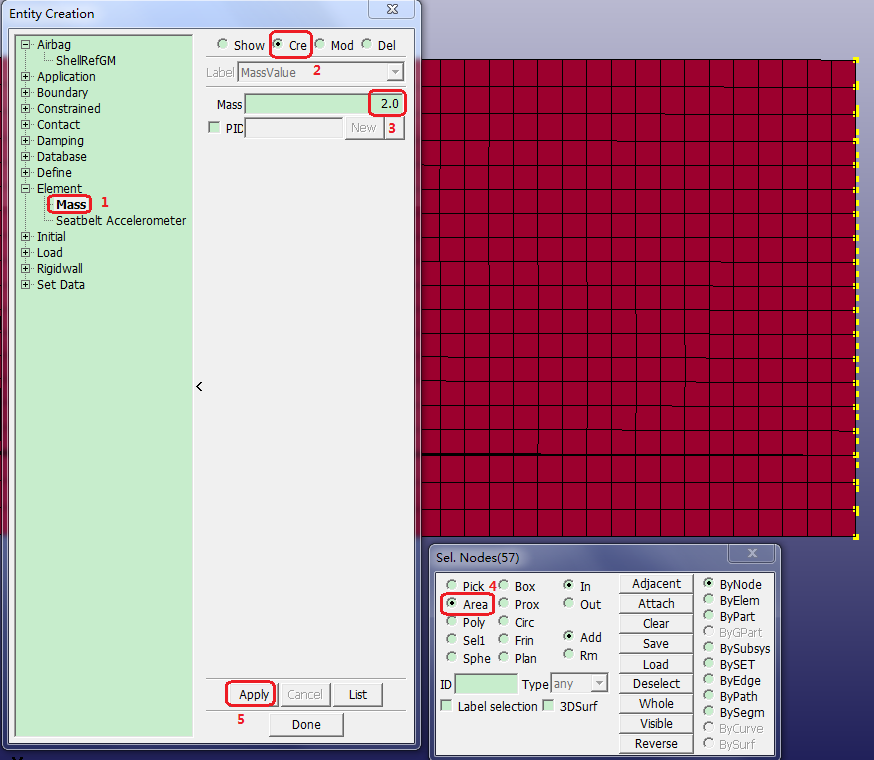

  3. Click FEM > Model and Part > Create Entity.

  4. Select Mass.

  5. Select Cre.

  6. Enter Mass=2.0.

  7. Select Area in the gen select panel.

  8. Draw box to select the end layer of nodes.

  9. Click Apply.
