3.5. Assign Section Properties and Material

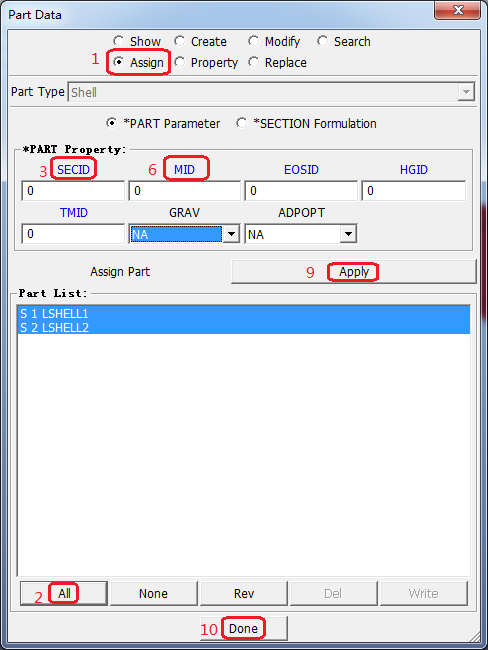

  1. Click FEM > Model and Part > Part Data.

  2. Select Assign.

  3. Click All.

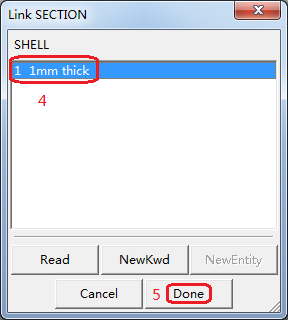

  4. Click SECID in the bottom panel, select section 1mm thick.

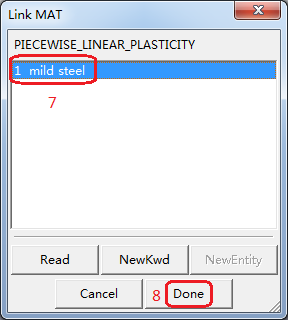

  5. Click Done in Link SECTION Dialog.

  6. Click MID in the bottom panel, select material mild steel.

  7. Click Done in Link MAT Dialog.

  8. Click Assign Part: Apply.

  9. Click Done to quit this dialog.
