4.8. Delete Horizontal Shell Faces of Discs

  1. Click FEM > Model and Part > Assembly and Select Part.

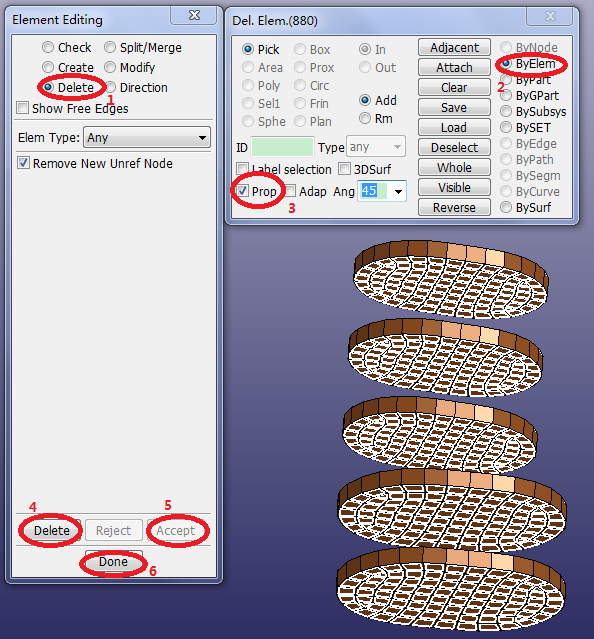

  2. Select S 5 only from the list.

  3. Click FEM > Element Tools > Element Editing.

  4. Under Element, select Delete.

  5. Select ByElem in the lower panel (gen select panel).

  6. Activate Prop in the lower panel.

  7. Click all the top faces in the graphics window.

  8. Click Delete.

  9. Click all the bottom faces in the graphics window.

  10. Click Delete.

  11. Click Accept.

  12. Click Done.
