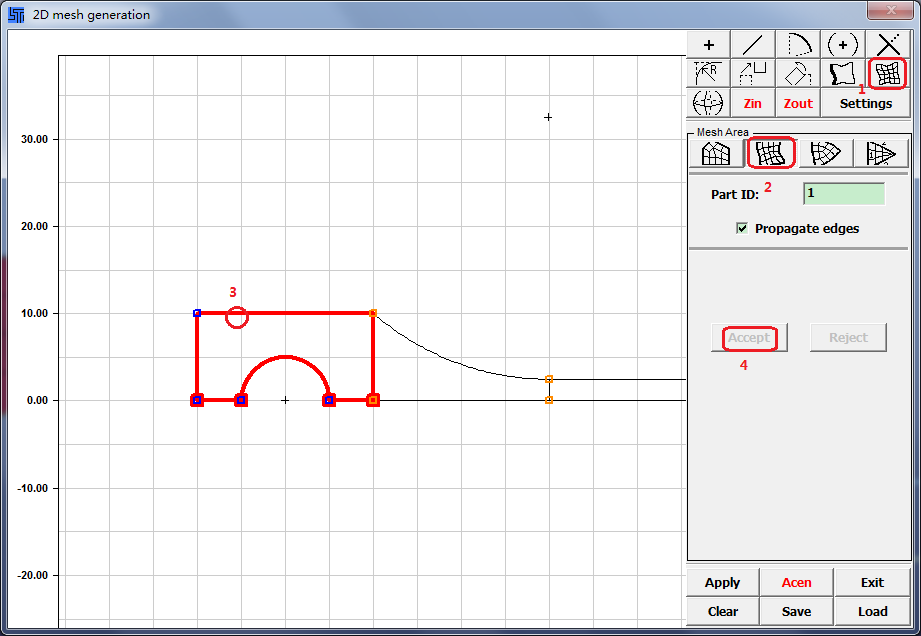

Contents Part II: Mesh Tutorials | Chapter 1: Introduction to the 2Dmesh Sketchboard | Print page 1.15. Mesh the Left AreaClick the Mesh icon.Click the 4 Edge Structured Quad icon.Click any edge.Click Accept to accept the mesh.Note: The mesh will disappear from the Sketchboard but is stored in the LS-PrePost database. « 1.14. Assign Number of Elements for Each Edge of Left Area 1.16. Create Edges for Middle and Right Areas »
