5.2. Mesh the Model

Now, you can mesh the model.

  1. In the right toolbar, go to Element and Mesh > AutoMesher .

  2. Choose Mesh Mode as Size, choose Mesh Type as Mixed.

  3. Click Compute to calculate a proper element size.

  4. When all parameters are prepared, area select all faces in the view region, or directly select the shell item in the left Feature Tree.

  5. Click Mesh to preview the meshing result.

  6. Click Accept.

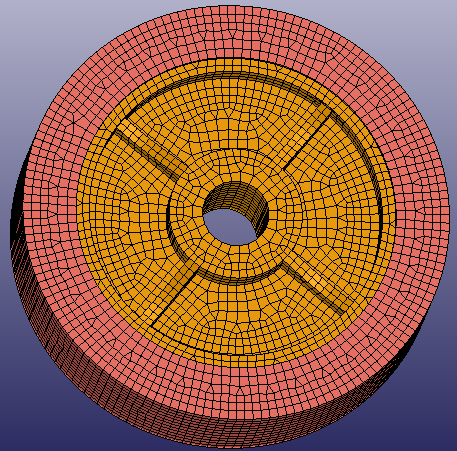

Figure 5.11: Meshing Result

Meshing Result
