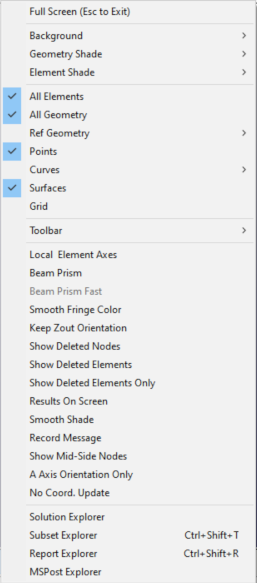

- Full Screen(Esc to Exit)
Show drawing area in full screen mode.
- Background
Set drawing area background (plain, fade, diaface, etc.).
- Geometry Shade
Set geometry displaying mode (Shaded geom with/no edges).
- Element Shade
Set element displaying mode (hidden, shaded, wireframe, feature line, etc.).
- All Element
Show/hide all elements.
- All Geometry
Show/hide all geometry.
- Ref Geometry
Show/hide reference geometry(ref axis, plane, point, coordinate system).
- Points
Show/hide geometry points.
- Curves
Show/hide geometry curves.
- Surfaces
Show/hide geometry surfaces.
- Grid
Show/hide grid in plane.
- Toolbar
Show/hide toolbar, show toolbar in text, icon or text and icon mode, and set font size.
- Local Element Axes
Toggle between global/local.
- Beam Prism
Toggle between line/prism.
- Smooth Fringe Color
Enable smoothing of contours (applicable only when in fringe mode).
- Keep Zout Orientation
Maintain orientation when zooming out.
- Show Deleted Nodes
Display deleted nodes when viewing LS_DYNA results.
- Show Deleted Elements
Display deleted elements when viewing LS_DYNA results.
- Results On Screen
Display results on screen when Show Results is active in the Ident interface .
- Smooth Shade
Set shade mode as flat or smooth.
- Record Message
Write command message to lspost.msg file.
- Show Mid-Side Node
Display Mid-Side node in high order elements.
