A sample to show how to add commonly used function to Favor1 using Define toolbar interface.

Step 1:

Go to the menu Settings->Toolbar Manager dialog.

Step 2:

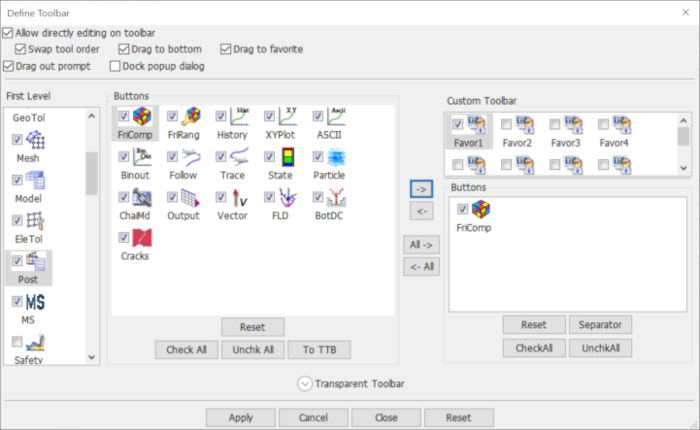

Click the icon Post and FriComp from Fist level and Buttons list individually, then click icon "->", see Figure 1.

Figure 3.15: Add FriComp to Favor1

Step 3:(continue to add more icon to Favor1)

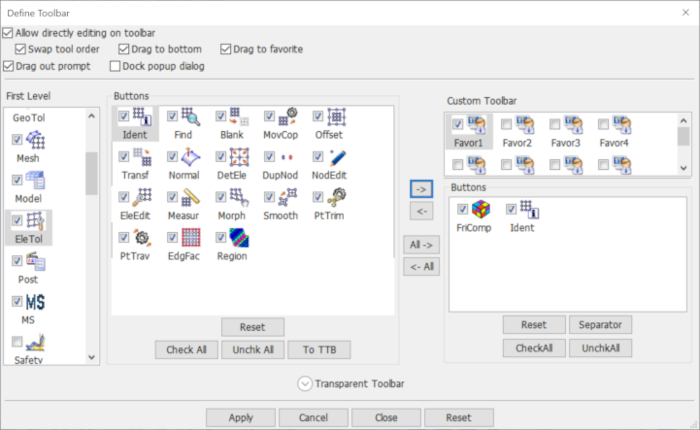

Click the icon EleTol and Ident from Fist level and Buttons list individually, then click icon "->";, see Figure 2.

Figure 3.16: add Ident to Favor1

Step 4:

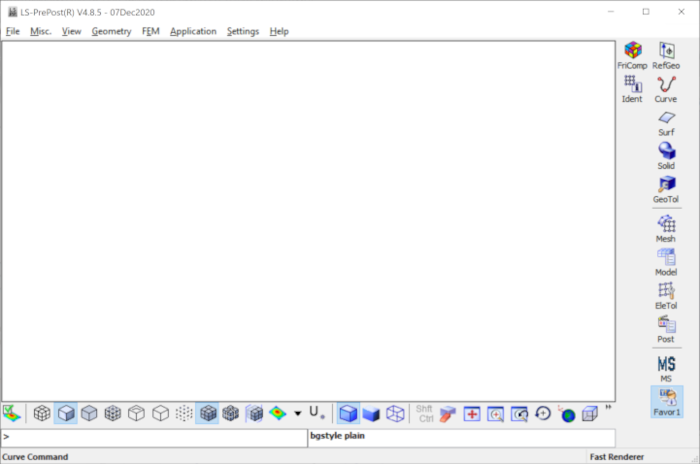

Click Apply to take effect, Closethe Define toolbar interface, then click icon Favor1 on the right toolbar, you will see that ident and FriComp are added to Favor1, see Figure 3.

Figure 3.17: Apply settings
