Clicking in the graphics window with the right mouse button opens a pop-up menu that changes based on what you click. The following sections illustrate the latest context menu for managing preprocessing and postprocessing of models.

Right-click a part in the graphics window to access the Blank, Unblank All, Reverse, Isolate, Delete, Copy, Color, Transparent, Property, Edit Keyword, Plot Mode, and Sort options. Choosing an option will apply to that part only.

Figure 3.13: Context Menu for a Part

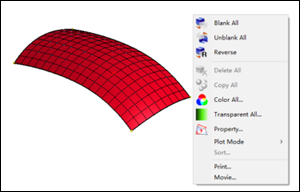

Right-click an empty area in the graphics window to access the Blank All, Unblank All, Reverse, Delete All, Copy All, Color All, Transparent All, Property, Plot Mode, Sort, Print, and Movie options. Choosing an option will apply to the whole model.

Figure 3.14: Context Menu for the Whole Model
