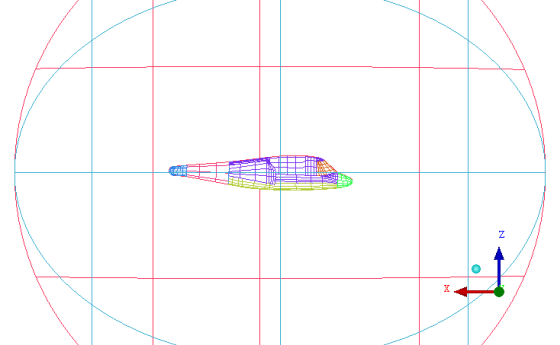

This tutorial demonstrates some prism options in a hybrid tetra/prism mesh for a helicopter.
Note: The far-field used in the tutorial is smaller than normal to reduce the runtime.
This tutorial demonstrates how to do the following:
Prepare the geometry for meshing.
Set up mesh parameters.
Generate the starting tetrahedral mesh.
Generate prisms using the ICEM CFD post-inflation process.
Generate prisms using the Fluent pre-inflation process.
Modify mesh parameters on a part-by-part basis.
