33.1. Fluent GPU Solver Beta Features

This section outlines the beta features supported by the Fluent GPU Solver. For information on defining settings for the beta features listed below, refer to their relevant sections in the Fluent User's Guide.

The following beta features are available when using the Fluent GPU Solver:



33.1.1. UDS

User-defined scalar (UDS) transport equations are supported by the Fluent GPU Solver as a beta feature, with the following general limitations:

  • Up to 50 transport equations can be defined and solved.

  • UDS equations can only be used for fluid zones.

  • Only single phase flow is supported.

  • Convective flux can be set as On or Off (UDF is not supported).

  • Inlet diffusion can be set as On or Off.

  • Source Terms can be defined as constant or using a profile or expression.

  • The Unsteady Function must be set to default.

  • The UDS Diffusivity must be constant.

  • Solution setup •Discretization scheme (per-uds) and relaxation parameters (common)

  • In the Solution Controls task page, the discretization scheme must be defined as per-uds with default relaxation parameters.



33.1.2. Transient Profiles

The Fluent GPU Solver supports the use of transient profiles to define boundary and cell zone conditions as a beta feature, with the following general limitations:

  • Transient periodic profiles are not supported.

  • Only piecewise linear interpolation is supported.

  • When using a transient profile with a steady state simulation, the initial condition of the profile (t=0) will be used.

Cell zone condition Source Terms can be defined using transient profiles for energy and momentum with the following limitations:

  • All three components of momentum must be of type transient profile.

  • More than one transient profile per equation can not be used.

  • Constant values can be specified for parameters in combination with transient profiles.

  • Steady profiles can not be used in combination with transient profiles.

The following limitations apply to setting up boundary conditions using transient profiles:

  • Transient profiles can be used for the following settings under the Momentum and Thermal tabs, for all types of boundary conditions:

    For Momentum options,

    • Static pressure

    • Temperature

    • Mass flow rate

    • Velocity can be specified as Magnitude and normal, Components, and Magnitude and direction (direction can not be specified as transient profile; only the magnitude can vary with time)

    For Thermal options,

    • Heat flux

    • Heat generation rate

    • Temperature

    • Free stream temperature

    • Heat transfer coefficient

    • Radiation temperature

    • Emissivity



33.1.3. Optimized LES Numerics

An optimized LES numerics scheme in available for the GPU solver. The optimized scheme typically allows for a reduction in the number of iterations used per time step (two iterations are often sufficient). In the case of continuity residuals not dropping for the second iteration, reducing the time step size provides better accuracy improvements over increasing the number of iterations per time step used, and eventually leads to better continuity residual behavior.

From the Viscous Model dialog box, when Large Eddy Simulation (LES) is selected, Optimized LES Numerics is available under LES Model Options.

Upon activation, the following TUI commands are enabled:

  • /solve/set/enhanced-les-numerics/optimized-advection? yes 1.0 0

    Uses the approximate 4th order reconstruction scheme for advected quantities.

  • /solve/set/enhanced-les-numerics/optimized-cd? yes

    Changes pressure-velocity coupling and pressure discretization.

  • /solve/set/enhanced-les-numerics/optimized-algorithm? Yes

    Sets momentum and pressure under-relaxation factors to 1. Sets use of SIMPLEC. Sets pressure-skew corrections to 0

Notes:

  • The changed advection scheme is not shown in the discretization panel, but only noted in the transcript.

  • Only for use with second order time discretization (default for LES).

  • This method can typically (tested mostly on high quality meshes) run without under-relaxation factors (1.0). In case of robustness issues, try setting momentum under-relaxation to 0.7.



33.1.4. Static Expressions

When using the GPU solver, no expressions are fully supported, but some static expressions are supported as beta features. Note that an expression is static if it does not include any time-related variables or aliases (that is, it does not include Time, Timestep, DeltaTime, Iteration, t, dt, iter and/or flow-time). The static expressions can be used in the following contexts:

  • Boundary Conditions: momentum, energy, user-defined scalars (UDS)

  • Sources: momentum, energy, UDS

  • Gravity

  • Materials (fluids only): density (constant only), thermal conductivity, viscosity

  • Models: momentum, energy, UDS

Only the following aliases have beta support for static expressions with the GPU solver. Aliases provide simplified syntax to access frequently used variables.

Table 33.1: Variable Aliases

Alias

Variable

x

Position.x

y

Position.y

z

Position.z

u

Velocity.x

v

Velocity.y

w

Velocity.z

T

StaticTemperature

P

StaticPressure

Amag

FaceAreaMagnitude

vol

CellVolume

mass

CellVolume*Density


Only the following expression operations and functions have beta support for static expressions with the GPU solver. All of these mathematical functions take inputs in the form of an expression that evaluates to a real number or a real field and return a real number or real field.

Table 33.2: Operations and Functions

Description

Function

Operators

+, -, *, /, ** (power), ^ (power), >, >=, <, <=, ==, !=

Conditional

AND(<expr>, <expr>, …)

IF(<cond>, <true_value>, <false_value>)

NOT(<expr>)

OR(<expr>, <expr>, …)

XOR(<expr>)

Hyperbolic

acosh(<expr>)

asinh(<expr>)

atanh(<expr>)

cosh(<expr>)

sinh(<expr>)

tanh(<expr>)

Mathematical

ceil(<expr>)

erf(<expr>)

erfc(<expr>)

exp(<expr>)

floor(<expr>)

log(<expr>)

log10(<expr>)

pow(<expr>)

sqrt(<expr>)

trunc(<expr>)

Reduction

Area(['location', 'location', …])

AreaAve(Field, ['location'])

AreaInt(Field, ['location'])

*Average(<expr>, ['location', 'location', …], Weight= <None| 'Area'| 'Volume'| 'Mass'| 'MassFlowRate'| 'AbsMassFlowRate'>)

Centroid(['location'])

Count(['location'])

MassAve(Field,['location'])

MassFlowAve(Field, ['location'])

MassFlowInt(Field, ['inelt1'], ['inlet2'])

MassInt(Field, ['location'])

Maximum(<expr>, ['location', 'location', …])

Minimum(<expr>, ['location', 'location', …])

Moment(<point>, ['location'])

*Sum(<expr>, ['location', 'location', …], Weight= <None| 'Area'| 'Volume'| 'Mass'| 'MassFlowRate'| 'AbsMassFlowRate'>)

Volume([<location>, <location>, …])

VolumeAve(Field, ['location'])

VolumeInt(Field, ['location'])

Trigonometric

acos(<expr>)

asin(<expr>)

atan(<expr>)

atan2(<expr>, <expr>)

cos(<expr>)

sin(<expr>)

tan(<expr>)


*For the Weight for mass-weighted reduction operations (Sum and Average), MassFlowRate is equivalent to a mass-weighted surface integral (Sum) or surface average (Average), AbsMassFlowRate is equivalent to the absolute value mass-weighted surface integral (Sum) or surface average (Average), and Mass is equal to a mass-weighted volume integral.

Note the following limitations for reduction operations:

  • You may use reduction operations with its operand only as primary fields like pressure, temperature, or velocity components (u, v, or w). For example: AreaAve(Pressure, ['inlet1']).

  • The centroid locations (x, y, z) are not supported inside reduction operations. For example, the following is not supported: Average(x, [‘zone1’]).

  • The arithmetic, trigonometric, or other mathematical operations on the aforementioned primary fields are not usable, as shown in the following examples:

    • Average(Velocity.x, ['inlet1'],Weight = 'Area') + 2 is a supported expression, as the addition operation is outside of the reduction operation.

    • Average(Velocity.x + 2, ['inlet1'],Weight = 'Area') is tabulated as an unsupported expression.

    • Average(VelocityMagnitude, ['inlet1'],Weight = 'Area') or Average(sqrt(u^2+v^2+w^2), ['inlet1'],Weight = 'Area') is not supported, as VelocityMagnitude is an alias to sqrt(u^2+v^2+w^2), which is tabulated as an unsupported expression.

Only the following scientific constants have beta support for static expressions with the GPU solver.

Table 33.3: Scientific Constants

Variable

Description

Value

PI

Pi

3.14159265358979323846

e

e (base of the natural logarithm)

2.71828182845904523536

R

Gas constant

8.314472 [J K^-1 mol^-1]

g

Acceleration due to gravity

9.8066502 [m s^-2]



33.1.5. Exporting Solution Data as EnSight DVS Files

When using the Fluent GPU Solver, the exporting of solution data as EnSight DVS files has beta support. Note the following differences when exporting such files when the data was calculated by the GPU solver compared to that generated by the CPU-based solver (as described in EnSight DVS in the Fluent User's Guide):

  • Exporting should be faster.

  • You are able to specify that data is exported from both cell zones and surfaces, not just one or the other.

  • You cannot export data from the nodes, only the cell centers.

To export solution data after a steady or transient calculation by the Fluent GPU Solver, perform one of the following:

  • Use the File/Export/Solution Data... ribbon tab option to open the Export dialog box, select EnSight DVS from the File Type drop-down list, and make selections from the Cell Zones and/or Surfaces lists, as well as the Quantities list. Then click the Write... button and specify the name of the file in the Select File dialog box that opens.

  • Use the following text command:

    file → export → ensight-dvs

To export solution data during a transient calculation by the Fluent GPU Solver, perform one of the following prior to running the calculation:

  • Use the File/Export/During Calculation/Solution Data... ribbon tab option to open the Automatic Export dialog box, select EnSight DVS from the File Type drop-down list, and make selections from the Cell Zones and/or Surfaces lists, as well as the Quantities list. Then make selections from the Export Data Every drop-down lists, enter a File Name, and click the OK button.

  • Use the following text command:

    file → transient-export → ensight-dvs



33.1.6. Restarting a Calculation with Minimal CPU Resources

The Fluent GPU Solver typically utilizes both GPU and CPU resources. The ability to restart the calculation in such a way as to minimize the needed CPU resources is supported as a beta feature. To do such a restart, perform the following steps:

  1. Launch a session of Fluent in one of the following ways, so that you can create the restart files:

    • Launch the Fluent GPU Solver in the typical fashion (that is, using the -gpu command line option or by enabling the Native GPU Solver option in Fluent Launcher).

    • Launch Fluent on a machine without any GPUs, using the -gpu=-1 command line option.

    Then perform the following:

    1. Create a 3D case and data file pair (for details, see Using the Fluent Native GPU Solver in the Fluent User's Guide).

      Note:  You must ensure that you write the resulting files in the Common Fluids Format (with the .cas.h5 and .dat.h5 extensions).

    2. Write restart files by performing one of the following:

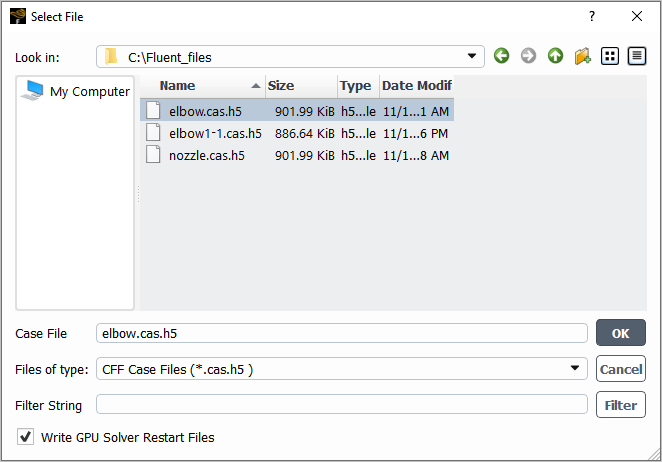

      • Open the Select File dialog box by clicking either the File/Write/Case... or File/Write/Case & Data... ribbon tab item; then enable the Write GPU Solver Restart Files option, enter a Case Name, and click OK.

        Figure 33.1: The Select File Dialog Box for Restart Files

        The Select File Dialog Box for Restart Files

      • Use the following text command:

        file → write-gpu-restart

        Note that a folder will be created that uses your case file name as a prefix, and that contains .pcas and .restart files.

  2. Continue the calculation:

    1. Launch an appropriate version of Fluent and read your case file by performing one of the following:

      • Launch a new session of the Fluent GPU Solver from the command line or Command Prompt window, adding a -lite option to specify the use of a version that is designed for dealing exclusively with lightweight settings. Note that you must ensure that you specify the same precision as the session used in the previous steps; for example, if you previously used double-precision, the full command would be fluent 3ddp -gpu -lite. Then read the case file you created in the original Fluent session.

      • Launch a new session of the Fluent GPU Solver in the typical fashion (that is, using the -gpu command line option or by enabling the Native GPU Solver option in Fluent Launcher). Note that you must ensure that you specify the same precision as the session used in the previous steps. Then read the case settings only of the case file you created in the original Fluent session; for example, you could read it using the File/Read/Case Settings Only... ribbon tab item.

    2. Review and/or modify the settings as necessary. For any operation that is related to the manipulation of the mesh, the graphical user interface (GUI) is grayed out, and the text command is unavailable; additionally, the define/models/addon-module text command is unavailable.

    3. Run the calculation. Note that there is no need to initialize first, but you can if you would like to reset the data.

    4. If you want to postprocess the results, perform one of the following:

      • As the calculation proceeds, export solution data as EnSight DVS files (as described in Exporting Solution Data as EnSight DVS Files) and view them using EnSight.

      • Write restart files, as described previously. Then launch either the Fluent GPU Solver (for example, using the -gpu command line option) or Fluent on a machine without any GPUs (using the -gpu=-1 command line option), using the same precision used in previous steps. Next, read the case file you created in the original Fluent session. Finally, use the file/read-gpu-restart text command to read the most recently saved restart files and view the results.



33.1.7. Discrete Phase Model (DPM)

When using the Fluent GPU Solver, the discrete phase model (DPM) is supported as a beta feature with the following capabilities and limitations:

  1. Massless, inert, and droplet particle types can be tracked.

  2. Both the steady and unsteady flow solvers are supported, but only transient particles are allowed.

  3. The steady tracking scheme available with the CPU-based Fluent solver cannot be used with the GPU solver.

  4. When particles are sampled, all particles will be sampled regardless of which injection they originated from. Specific injections can be selected in the GUI, but this will be ignored when running on the GPU Solver.

  5. With the Fluent GPU solver, pathlines can be displayed for postprocessing, however, the pathlines will be calculated using the CPU-based Fluent solver.

  6. The default High-Res Tracking particle tracking option available with the CPU-based Fluent solver is used exclusively when using the Fluent GPU solver.

  7. Barycentric interpolation is used to interpolate flow solver variables like velocity and turbulence quantities to the particle position.

  8. By default, Fluent will use cell-center values of flow density and viscosity when calculating forces on the particle. If these properties vary with position, it is recommended that they are interpolated to the particle position as well. See Tracking Settings for the Discrete Phase Model for details.

  9. When merging injections into common particle types, the gas phase species corresponding to an evaporating droplet is not compared as an injection property. This will introduce an error if different injections have different evaporating species, but are otherwise identical.

The following DPM model injections can be used with the GPU solver:

  • Single injection

  • Surface injection

    • Face center, randomly distributed over surface.

  • Group injection

  • Steady file injection

  • Cone injections

    • Hollow-cone

    • Solid-cone

    • Ring-cone

    • Point-cone

  • Constant or Rosin-Rammler size distributions are supported.

  • When using the transient flow solver particles are injected at the beginning of the flow time step.

When the transient flow solver is used, particles will be injected at each flow timestep if the flow time is between the specified Start Time and Stop Time for the injection. Note that DPM parcels are created using the CPU-based Fluent solver, which are then uploaded to the GPU solver. Therefore, DPM parcels cannot be recomputed each time the particle solver is executed. Surface injections with the Randomize Starting Points option enabled will provide random initial positions but the starting positions will not change every time DPM parcels are injected.

For inert and droplet particle types the following physical models are available:

  • Drag

    • Spherical drag

    • Dynamic drag law is available when breakup is active.

  • Convective Heat Transfer

  • Gravity / Buoyancy

  • Turbulent Dispersion

    • Discrete Random Walk model.

    • Number of Tries is fixed at 1.

    • Model constants cannot be changed and the Time Scale Constant is set to the default value of 0.15.

  • Droplet breakup

    • The Stochastic Secondary Droplet model (SSD Breakup) is available for spray simulations involving droplet breakup due to aerodynamic forces.

    • During droplet breakup no child droplets will be spawned. Instead, the parent droplet will be adjusted in diameter and number in parcel to represent a smaller particle with conserved mass.

    • Model constants for the SSD model are accessible in the Discrete Phase Model panel and can be adjusted if needed. The following defaults are used:

      • Critical Weber Number = 6

      • Core B1 = 1.73

      • Xi = -0.1

      • Target Number In Parcel = 10

  • Evaporation/Boiling

    • Particle mass transfer is only available for particles of type Droplet.

    • Currently restricted to single component particle materials.

    • Requires the activation of the species transport model or nonadiabatic FGM combustion model.

    • The implemented evaporation model uses the convection-diffusion approach of Fluent.

    • Switching between evaporation and boiling is based on the particle material vapor pressure.

    • By default, the Pressure Dependent Boiling and Temperature Dependent Latent Heat options are enabled and cannot be disabled.

    • The concept of "DPM Laws" as used by the DPM module on the CPU is not used on the GPU.

One-way particle-flow coupling is available in which the particle phase does not influence the continuous phase. Two-way particle-flow coupling (where particles can influence the flow via source terms) can also be enabled by selecting the Interaction with Continuous Phase option in the Discrete Phase Model dialog box. Particles can transfer sources into the following flow equations:

  • Momentum

  • Energy

  • Species

    • Two-way coupling with the nonadiabatic FGM combustion model is supported.

    • Particle sub-cycling, in which particles are tracked multiple times within a single flow solver timestep, is supported. This functionality is controlled by the DPM Iteration Interval entry in the Discrete Phase Model dialog box.

  • Underrelaxation of DPM source terms is available.

    When using two-way coupling, the Linearize Source Terms and Update DPM Sources Every Flow Iteration options are available.

  • the Linearize Source Terms and Update DPM Sources Every Flow Iteration options are supported for the Energy and Momentum source terms. Linearization is not supported for Species/Mass.

    For details on these settings, see Steady/Transient Treatment of Particles.

When using the Fluent GPU solver, the particle numerical methods cannot be modified. The trapezoidal Euler method will be used to calculate the particle position, the implicit Euler method is used for particle momentum and energy, and the explicit Euler method is used to calculate species and mass. Additionally, the accuracy control option available with the CPU-based Fluent solver is unavailable with the GPU solver. The particle integration timestep will be calculated from the Step Length Factor set in the Discrete Phase Model dialog box.

The following boundary conditions are supported with particle tracking:

  • inlet

  • outlet

  • wall

  • symmetry

  • conformal translational or rotational periodic interfaces

  • nonconformal interfaces with and without translational or rotational periodicity

Particle boundary conditions can be specified at inlets, outlets, and walls. Supported options are:

  • Reflect

    Note:  Particles intersecting the non-overlap region of nonconformal interfaces will reflect. Restitution coefficients for particle reflections can be specified in the GUI for non-overlap regions.

  • Escape

  • Trap

The following DPM post-processing capabilities are available:

  • Mass-in-domain DPM monitor for reporting current particle mass (in [kg]) or the change in mass (in [kg/s]) in the domain.

  • Injected-mass, escaped-mass, and evaporated-mass monitors for reporting the mass (in [kg]) or flow rate (in [kg/s]) for the given flow solver time step.

  • Sampling of particle data can only be done at face zones. Sampling on post-processing surfaces/planes is not supported.

When using the Fluent GPU solver, the Graphical User Interface (GUI) will be restricted to DPM features that are supported. However, the Text User Interface (TUI) will not have such restrictions. As such, it is recommended that the GUI be used when setting up the DPM model to ensure that invalid options are not enabled.

Important:  It is possible to enable unsupported features through the TUI. Doing so may result in a crash and total loss of data. Be certain that only supported features are enabled.

Note that when using the Fluent GPU solver, the DPM model is restricted to stationary meshes. Additionally, non-conformal interfaces are not supported. Zero-thickness walls (for example, baffles) should not be combined with the DPM model when using the Fluent GPU solver as the results will be inaccurate in the vicinity of the wall.



33.1.8. Python User-Defined Functions (UDFs)

The Fluent Native GPU solver supports the use of user-defined functions (UDFs) written in Python as a beta feature, so that you can take advantage of the massively parallel computations. Your UDF code will largely retain the simplicity of the Python programming language, so that you can focus on the physical model. Internally, your Python code is transformed into machine code for use by the Native GPU Solver.

The following capabilities are supported:

  • profiles (for example, inlet velocity or temperature profiles)

  • source terms (for example, a temperature or momentum source over a cell zone)

  • properties (for example, changing the fluid flow viscosity to non-Newtonian or temperature-dependent viscosity)

To use Python UDFs with the Fluent Native GPU solver, perform the following steps:

  1. Write a Python UDF file (for details, see the examples that follow), and save it in the same directory as the case file.

  2. Hook the Python UDF by entering the following Scheme command in the console or the journal file. The command must refer to the name of the UDF file, which in this example is myudf.py.

    (rpsetvar 'gpuapp/python-udf-files '("myudf.py"))

    Note that the Scheme command that hooks the Python UDF is saved as part of the case file. If the UDF file is deleted at a later time, a warning message about the missing Python UDF file will be displayed in the console the next time Fluent initializes the case or runs the calculation.

    When loading the Python UDF, a table is printed in the console that lists the UDF hooks and the zones to which the UDF function is hooked, as shown in the following example:

    +--------------------------+-----------+----------------+
|     Python UDF Name      |  Zone ID  |   Zone Name    |
+--------------------------+-----------+----------------+
|   MAXU (max reduction)   |     *     | all cell zones |
+--------------------------+-----------+----------------+
|   MAXT (max reduction)   |     1     |     fluid      |
+--------------------------+-----------+----------------+
|   udf_velocity_profile   |     6     |     inlet      |
+--------------------------+-----------+----------------+
| udf_cylinder_temperature |     7     |      wall      |
+--------------------------+-----------+----------------+

  3. The Python UDF is transformed and compiled by Just-In-Time (JIT) compilation when the calculation begins. Certain errors, such as Python syntax errors or the use of an unsupported field (see the list that follows for supported fields), are detected and reported in the Fluent console; such errors cause the loading of the Python UDF file to fail.

A key difference from the UDFs written in C is that the Python UDF code does not need to loop over a cell or face thread, meaning macros like begin_c_loop are not used. Instead, the body of a UDF function is applied to all faces of a face zone (or all cells of a cell zone) in a massively parallel manner. This reflects the fundamental difference of their serial vs. parallel execution model.

Python UDFs are limited to a predefined set of variables as their arguments, which are listed in Table 33.4: Supported Variables. The variables have the same naming convention as those for C UDFs, but are in lowercase in keeping with the Python programming convention. More information about these variables may be found in the sections about creating and using user-defined functions in the Fluent Customization Manual.

Table 33.4: Supported Variables

VariableReturns
flow_time

current simulation time

f_centroid

coordinate position of the centroid of a face

c_centroid

coordinate position of the centroid of a cell

c_wall_dist

wall distance for cells

c_p_g

pressure gradient vector for cells

c_u_g

velocity gradient vector for cells

c_v_g

velocity gradient vector for cells

c_w_g

velocity gradient vector for cells

c_r

density for cells

c_p

pressure for cells

c_u

u velocity for cells

c_v

v velocity for cells

c_w

w velocity for cells

f_r

density at faces

f_p

pressure at faces

f_u

u velocity at faces

f_v

v velocity at faces

f_w

w velocity at faces

c_t

temperature for cells

f_t

temperature at faces

c_k

turbulent kinetic energy for cells

c_o

specific dissipation rate for cells

c_d

turbulent kinetic energy dissipation rate for cells

c_mu_l

laminar viscosity for cells

c_mu_t

turbulent viscosity for cells[a]

f_flux

mass flow rate through a face

c_geko_csep

coefficient (as part of the GEKO turbulence model) for cells

c_geko_cnw

coefficient (as part of the GEKO turbulence model) for cells

c_geko_cmix

coefficient (as part of the GEKO turbulence model) for cells

c_geko_bf

user-defined blending function (as part of the GEKO turbulence model) for cells

c_sound_speed

speed of sound for cells

[a] In an Embedded LES case with SAS or DES for the global turbulence model, the global turbulence model is solved even inside the LES zone, although it does not affect the velocity equations or any other model there. (This allows the global turbulence model in a downstream RANS zone to have proper inflow turbulence conditions.) Inside the LES zone, all global turbulence models are completely frozen in all LES zones; in such cases, only the LES sub-grid scale model's eddy viscosity is available through c_mu_t in the LES zones, as is always true for all LES zones and all pure LES cases.


Note:  If a UDF function is applied to a face zone, it can only access face zone variables and cannot access cell zone variables; that is, its parameter can only be f_* or flow_time, and cannot be c_*.

When you hook a UDF, you apply a function to a certain face or cell zone. This is commonly done using dedicated function calls. For example, the following demonstrates how to hook up the UDF in the Python code, and applies function_pointer to all_cell_zones:

UDF.add_cell_zone_energy_source(function_pointer, UDF.all_cell_zones())

In this case, add_cell_zone_energy_source is a hookup function (for a list of supported hookup functions, see Table 33.5: Supported Hookup Functions); and all_cell_zones is a zone selection function (for a list of supported zone selection functions, see Table 33.6: Supported Zone Selection Functions).

The Python UDF predefines a Real type, which should be used for all floating point numerical values. The Real type automatically maps to 32- or 64-bit floating point numbers depending on whether Fluent is executed in single or double-precision mode, respectively, to ensure consistency. A common mistake, for example, is to use 2.0 or 2 when you should use Real(2.0).

Table 33.5: Supported Hookup Functions

Hookup Function
add_boundary_condition_velocity(function_pointer, zones=[])
add_boundary_condition_temperature(function_pointer, zones=[])
add_laminar_viscosity(function_pointer, zones=[])
add_cell_zone_energy_source(function_pointer, zones=[])
add_cell_zone_momentum_source(function_pointer, zones=[])
add_cell_zone_turbulence_geko_bf(function_pointer, zones=[])
add_cell_zone_turbulence_geko_csep(function_pointer, zones=[])
add_cell_zone_turbulence_geko_cmix(function_pointer, zones=[])
add_cell_zone_turbulence_geko_cnw(function_pointer, zones=[])
add_cell_zone_udm(function_pointer, zones=[])[a]

[a] For further details about add_cell_zone_udm, see User-Defined Memory.


Table 33.6: Supported Zone Selection Functions

Zone Selection Function
all_cell_zones()
fluid_cell_zones()
solid_cell_zones()
interior_face_zones()
wall_face_zones()
pressure_inlet_face_zones()
velocity_inlet_face_zones()
mass_flow_inlet_face_zones()

The names of UDF functions (that is, the function pointers that you define in your Python UDF and reference in your hookup functions) must start with udf_; for example, udf_velocity_profile. The prefix udf_ is used to identify and further process the UDF functions.

A device function is a Python function whose name starts with device_. They are used to create small, reusable utilities that can be called by UDF functions. Like UDF functions, the prefix device_ is used to identify and process those functions, and it is important to follow this naming convention. For further details, see Device Functions.

Note:  The following are not supported with Python UDFs:

  • multiphase flows

  • species transport

  • user-defined scalars

  • retrieval of mesh connectivity information (for example, neighboring cell zones of a face zone)

For further details and examples, see the following:



33.1.8.1. Device Functions

You can create device functions, that is, generic utility functions that get compiled into device code that runs on the GPU. The device functions can be called by other UDF functions (functions whose name starts with udf_), and their main intended use is to make small, reusable tools. For example, they can calculate dot or cross product of vectors, or clip a variable within certain min / max limit. The name of a device function must start with device_. An example is given below:

def device_dot_product(a:Real3, b:Real3):
    return a[0]*b[0] + a[1]*b[1] + a[2]*b[2]

You are advised to use Python’s type hint to indicate the parameters’ data type. If omitted, a parameter is treated by default as a single floating-point number (of type Real). To treat a parameter as a 3D vector (as in the previous example), you must use type hint to specify the parameter type as Real3, which is a predefined type for 3D vectors.



33.1.8.2. User-Defined Memory

You can define a certain number of user-defined memory allocations (UDMs) in Fluent and use them in a Python UDF. UDMs are intended for postprocessing uses only: a UDM is filled with certain values during the GPU computation and then visualized later in Fluent like other field variables. The function that follows hooks a UDM at index udm_index with function fn, which writes to that UDM. Here, fn is a regular UDF function (the name starts with udf_), and udm_index is the UDM’s index that starts from 0.

UDF.add_cell_zone_udm(fn, udm_index)
Note:

  • The UDM is defined and calculated for all cell zones; there is no “per cell zone” UDM.

  • You must ensure that there are a sufficient number of UDMs for indexing. Otherwise, an error message is printed and the Python UDF will fail to load. For example, if a Python UDF accesses a UDM up to index 1, at least two UDMs should be defined in Fluent (see Figure 33.2: User-Defined Memory Dialog Box).

Figure 33.2: User-Defined Memory Dialog Box

User-Defined Memory Dialog Box

An example that uses UDMs is given below. It fills the 0th UDM using a function that evaluates spatially varying values, and the 1st UDM using a function that calculates velocity magnitude from the velocity components.

def udf_fill_udm0(c_centroid):
    x,y,z = c_centroid
    if y < 0.005:
        if x > 0.005:
            mag = 1.0
        else:
            mag = 2.0
    return Real(mag)

def udf_calc_vel_mag(c_u, c_v, c_w):
    # write velocity magnitude for postprocessing
    return math.sqrt(Real(c_u*c_u + c_v*c_v + c_w*c_w))

UDF.add_cell_zone_udm(udf_fill_udm0, 0)
UDF.add_cell_zone_udm(udf_calc_vel_mag, 1)


33.1.8.3. Global Reduction

You can define a global reduction, as shown in the following example:

MAXT = UDF.reduce('max', c_t, [1])

This defines a variable MAXT (a single floating-point value) that can be used elsewhere by the Python code. Here, UDF.reduce is a predefined function from the UDF module, and its arguments are:

  • 'max'

    This is a string indicating the global reduction operation. The supported operations are 'min', 'max', 'avg', and 'sum'.

  • c_t

    This is one of the predefined fields. For others, see Table 33.4: Supported Variables.

  • [1]

    This is a list of zone IDs to which the reduction applies.

After it is defined, this variable can be used in other UDF functions. Note that if a function uses MAXT, that function must explicitly lists MAXT as one of the function parameters; you cannot use MAXT as a Python global variable.

Example

The following provides a detailed example that demonstrates the usage of global reduction. The case is a pseudo-2D channel with a square shaped obstacle in the middle. It has the following conditions:

  • The inlet (the left domain boundary, indicated using blue arrows, with a face zone ID equal to 6) has a cold fluid (T = 300K) that enters the domain at a uniform velocity profile of 0.5 m/s.

  • The cylinder (the hollow square in the domain with a face zone ID equal to 7) is heating up with time following a linear rule: T=300+100t [K].

  • An operation protocol is imposed, such that after the temperature in the fluid cell zone (with cell zone ID equal to 1) exceeds 305 K, the inlet velocity is doubled to 1.0 m/s.

Figure 33.3: A Demonstration Case of the Reduction Functionality

A Demonstration Case of the Reduction Functionality

The three conditions are implemented in the Python UDF that follows. The code uses three zone IDs and imposes two transient boundary conditions, one of which involves global reduction, yet it has only 10 lines of code.

MAXT = UDF.reduce('max', c_t, [1])

def udf_cylinder_temperature(flow_time):
    return min(Real(310.0), Real(300.0 + 100.0 * flow_time))

def udf_velocity_profile(f_centroid, MAXT):
    if MAXT > Real(305.0):
        return (Real(1.0), Real(0), Real(0))
    else:
        return (Real(0.5), Real(0), Real(0))

UDF.add(udf_velocity_profile, 'boundary-condition', 'momentum', 'velocity', UDF.velocity_inlet_face_zones())
UDF.add(udf_cylinder_temperature, 'boundary-condition', 'energy', 'temperature', UDF.wall_face_zones())

Note that the cylinder temperature increases from T = 300 to 305 in 0.05 seconds. Because the thermal boundary layer takes some time to develop, the cell next to the hot cylinder reaches T = 305 after a short delay, then the inlet velocity increases from 0.5 m/s to 1.0 m/s. The time series of the maximum inlet velocity confirms this behavior (Figure 33.4: Time Series of the Maximum Inlet Velocity).

Figure 33.4: Time Series of the Maximum Inlet Velocity

Time Series of the Maximum Inlet Velocity

Notice that the maximum inlet velocity magnitude doubles after the maximum cell zone temperature exceeds a threshold specified in the Python UDF.



33.1.8.4. Troubleshooting Python UDFs

Due to the code transformation that takes place behind the scenes, it is not possible to interactively debug a Python UDF, in that you cannot open the Python UDF code in an integrated development environment (IDE) software, set a break point, and step through the code. You must instead run the case and check the results. The following tips are recommended for troubleshooting:

  • You should have a few small cases ready for testing the Python UDF. For example, you might want to specify the velocity profile at a pipe inlet: instead of using a case with millions of cells to write and test the Python UDF, it is much more efficient to use a small pipe case with only hundreds or thousands of cells.

  • You can insert the print command in the Python UDF code, which prints data to the Fluent console. As an example, consider the implementation of a parabolic velocity profile for a pseudo-2D channel. You could use the code that follows:

    ```python
def udf_velocity_profile(f_centroid):
    y = f_centroid[1]
    u = (Real(1.0) - pow(y / Real(5), Real(2)))
    print(y, u) # the print statement
    return (u, Real(0), Real(0))
UDF.add(udf_velocity_profile, 'boundary-condition', 'momentum', 'velocity', [6])
```

    The print command is invoked at every face of the inlet zone (in this case, face zone 6), and the result can be visualized using a program such as Matplotlib. Because the printing happens in a random order—a typical character of parallel execution—you can plot the data using a scatter plot instead of a line plot. You should use a case with a small number of faces to avoid printing excessive amount of messages in the console.



33.1.8.5. Example 1: Inlet Velocity Profile

In this example, a Python UDF is applied at the inlet face zone (ID = 6). The u velocity component is calculated from the face centroid coordinate to impose a parabolic profile.

def udf_myconstant():
    return Real(0.5)

def udf_velocity_profile(f_centroid):
    return Real(0.5) + udf_myconstant() - pow(f_centroid[1]/Real(5), Real(2)), Real(0), Real(0)

# apply the velocity profile to zone 6
UDF.add_boundary_condition_velocity(udf_velocity_profile, [6])

This example also demonstrates the use of one UDF function within another UDF function.

Note:  All function parameters (f_centroid, in this case) are read only, and you should not modify their value in the function body. This restriction applies to all other examples in the following sections and to Python UDFs in general.

To see an equivalent C UDF, see vprofile.c in Parabolic Velocity Inlet Profile in an Elbow Duct in the Fluent Customization Manual.



33.1.8.6. Example 2: Non-Newtonian Viscosity

In this Python UDF example, the strain-rate magnitude is computed and used to determine the laminar viscosity.

def udf_visc(c_u_g, c_v_g, c_w_g):​
    dxx = c_u_g[0]​
    dyy = c_v_g[1]​
    dzz = c_w_g[2]​
    dxy = Real(0.5) * (c_u_g[1] + c_v_g[0])​
    dxz = Real(0.5) * (c_u_g[2] + c_w_g[0])​
    dyz = Real(0.5) * (c_v_g[2] + c_w_g[1])​
    strain_rate = math.sqrt(Real(2) * (dxx*dxx + dyy*dyy + dzz*dzz + Real(2)*(dxy*dxy + dxz*dxz + dyz*dyz)))​

    # Calculate viscosity​
    Eta0 = Real(0.1604)​
    Etainf = Real( 0.0674)​
    lam = Real(1.46e-3)​
    n0 = Real(0.5996)​
    one = Real(1)​
    two = Real(2)​
    return Etainf+(Eta0-Etainf) * pow(one + pow(lam*strain_rate, two),  (n0-one)/two)​

# add laminar viscosity UDF for all cell zones​
UDF.add_laminar_viscosity(udf_visc, UDF.all_cell_zones())​


33.1.8.7. Example 3: Transient Energy Source

This Python UDF example calculates a transient energy source. The built-in variables flow_time and c_centroid provide time and cell-centroid coordinates, and Python's math module provides the mathematical function (sin) and constant (pi).

def udf_heat_source(flow_time, c_centroid):
    x = c_centroid[0] + Real(0.02)
    y = c_centroid[1]
    radius = Real(0.003)
    mag = Real(0.0)
    omega = Real(2.0 * math.pi)

    if x*x + y*y < radius*radius:
        mag = Real(600.0) * math.sin(omega*flow_time)

    return mag

UDF.add_cell_zone_energy_source(udf_heat_source, [2])


33.1.8.8. Example 4: Temperature-Dependent Viscosity

In this Python UDF example, the laminar viscosity is calculated as a piecewise-linear function of temperature.

def udf_visc(c_t):
    if c_t > Real(288.0):
        return Real(5.5e-3)
    elif c_t > Real(286.0):
        return Real(143.2135) - Real(0.49725)*c_t
    else:
        return Real(1.0)

UDF.add_laminar_viscosity(udf_visc, [1])

To see an equivalent C UDF, see Solidification via a Temperature-Dependent Viscosity in the Fluent Customization Manual.



33.1.8.9. Example 5: Synthetic Inlet Velocity

The following Python UDF defines a time- and position-dependent inlet velocity boundary condition.

number_of_waves_per_yz = Real(3.0)

kx = Real(number_of_waves_per_yz*math.pi)
ky =-kx
kz = kx
ux = Real(2.0)/math.sqrt(Real(6.0))
uy = Real(0.5)*ux
uz = Real(0.5)*ux

Uin   = Real(30.0)
omega = kx * Uin

def udf_velocity_profile(flow_time, f_centroid):
    x, y, z = f_centroid[0], f_centroid[1], f_centroid[2]
    factor = math.cos(kx*x + ky*y + kz*z - omega*flow_time)
    u_prof = Uin + ux*factor
    v_prof =       uy*factor
    w_prof =       uz*factor
    return Real(u_prof), Real(v_prof), Real(w_prof)

UDF.add_boundary_condition_velocity(udf_velocity_profile, [5])


33.1.8.10. Example 6: Momentum Source Term

The following Python UDF is for a pseudo-2D swirling flow created by a momentum source.

def udf_swirling_force(c_centroid):​
    x, y, z = c_centroid​
    radius = math.sqrt(x*x + y*y)​
    if radius < Real(0.001):​
        return Real(0.0), Real(0.0), Real(0.0)​
    return Real(-y/radius), Real(x/radius), Real(0.0)​

UDF.add(udf_swirling_force, 'cell-zone-source', 'momentum', 'velocity', [2])​

Note that a momentum source term UDF is much simpler to implement in a Python UDF. For a UDF written in C, you have to implement the source term for each of the x, y, z components of the momentum equation, whereas in a Python UDF, you just need to implement a single UDF.



33.1.9. C User-Defined Functions (UDFs) with the Fluent GPU Solver

The recommended way to customize the Fluent GPU Solver is to use user-defined functions (UDFs) written in Python, as described in Python User-Defined Functions (UDFs). If you must use UDFs written in C, you should note that only the following DEFINE macros may potentially work with the Fluent GPU Solver, and you must verify that they are performing as intended on an individual basis.

Table 33.7: Potentially Supported DEFINE Macros for C UDFs

DEFINE Macros
DEFINE_INIT
DEFINE_EXECUTE_AFTER_CASE
DEFINE_EXECUTE_AFTER_DATA
DEFINE_EXECUTE_AT_EXIT
DEFINE_EXECUTE_ON_LOADING
DEFINE_ON_DEMAND
DEFINE_PDF_TABLE
DEFINE_PROFILE
DEFINE_RW_FILE
DEFINE_RW_HDF_FILE

When loading a C UDF in the Fluent GPU Solver, Fluent checks the list of functions in the UDF library and issues warnings in the console if DEFINE macros are detected that are not in the previous list.
