The following figure shows the temperature distribution in the solid region. As expected, the blade is cooler near the holes.

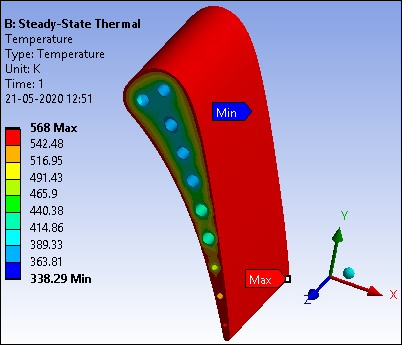

Figure 6.14: Solid Region Temperature Distribution

The following two figures show the fluid and solid surface temperatures, respectively. The fluid temperature rises from inlet to outlet. The solid surface temperature shows a similar trend.

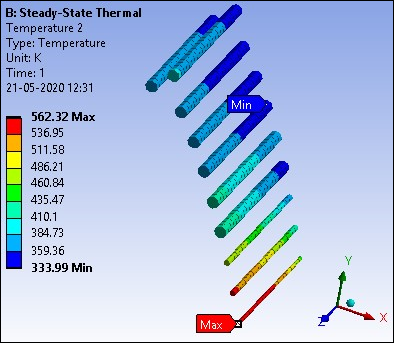

Figure 6.15: Fluid Temperatures

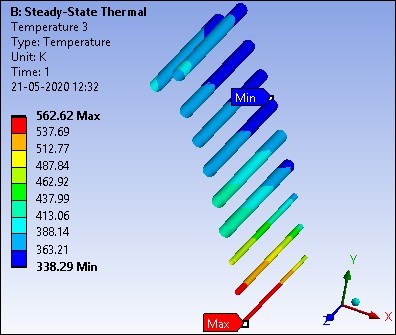

Figure 6.16: Solid Surface Temperatures

The following two XY plots show the fluid and solid temperatures, respectively, along the fluid path of hole number 1.

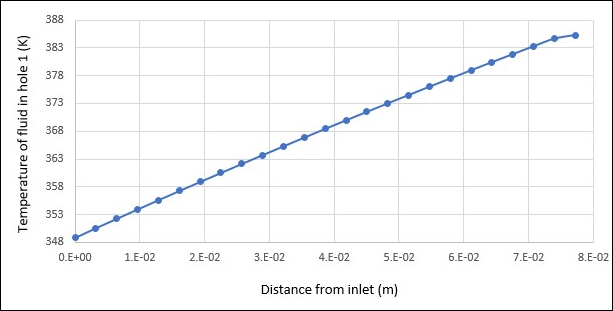

Figure 6.17: Fluid Temperature Along Path of Hole Number 1

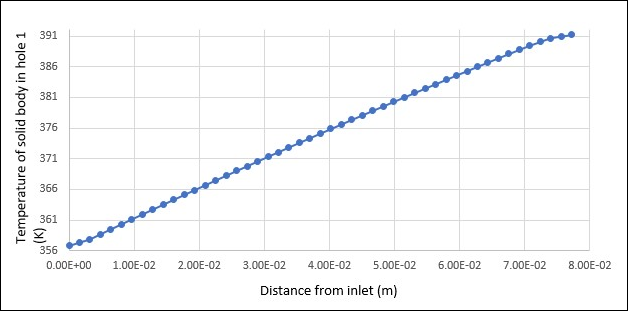

Figure 6.18: Solid Temperature Along Path of Hole Number 1

The next figure shows the von Mises stresses for the solid region. Maximum stresses occur inside hole number 10.

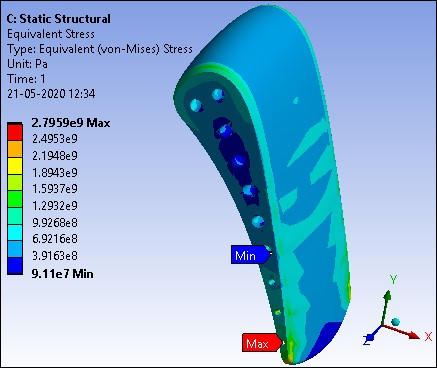

Figure 6.19: Von Mises Stresses for Solid Region

The following XY plot shows the stress variation in hole 1.

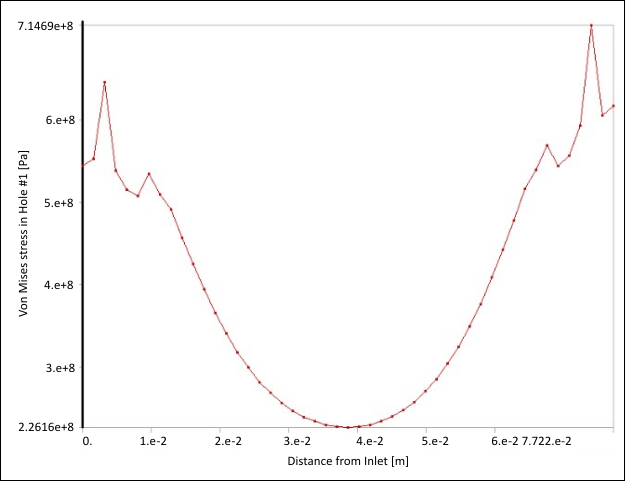

Figure 6.20: Von Mises Stress Along Path of Hole Number 1

Summary of Results

The following table summarizes results of the simulation.
