6.5. Boundary Conditions and Loading

The exterior surface temperature of the solid is maintained at 568° K and applied to four faces.

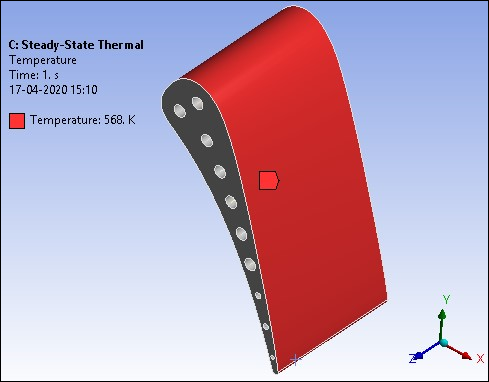

Figure 6.11: Exterior Surface Temperature of the Solid

Exterior Surface Temperature of the Solid


The inflow temperatures and mass flow rates are as follows:

Hole Number Inflow Temperature (°K) Mass Flow Rate (kg/sec)
1348.830.228E-01
2349.320.239E-01
3339.490.228E-01
4342.300.243E-01
5333.990.239E-01
6364.950.242E-01
7343.370.232E-01
8365.410.799E-02
9408.780.499E-02
10453.180.253E-02

Figure 6.12: First Hole Inflow Temperatures

First Hole Inflow Temperatures

Figure 6.13: First Hole Mass Flow Rate

First Hole Mass Flow Rate

A Fixed Support boundary condition is scoped to the two faces at inlet and outlet sections.
