VM-AM-MECH-001

VM-AM-MECH-001
Additive Manufacture of Five-Post Beam Using Inconel 718

Overview

Reference: Model and experimental results from America Makes, Project #4026, March 2017
Material:Inconel 718
Supports Included:No
Solver(s): Additive in MechanicalAdditive Print
Physics/Modes:Linked Transient Thermal - Static StructuralAssumed Strain
Platform:Windows only

Test Case

Perform a simulation of a Laser Powder Bed Fusion (L-PBF) additive manufacturing process of a beam with five posts printed with Inconel 718 nickel chromium alloy.

Find the distortion in the X direction along an edge of the part and compare results to measurements taken of the built part.

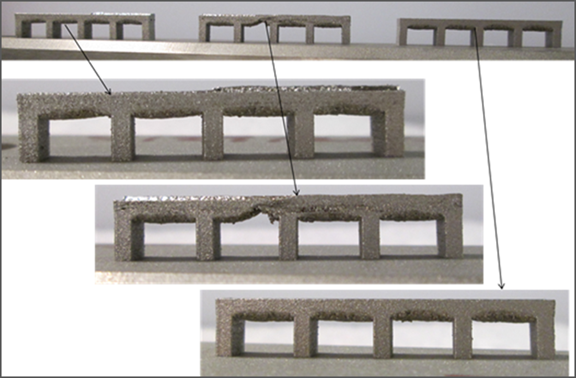

Figure 179: Built Part

Built Part

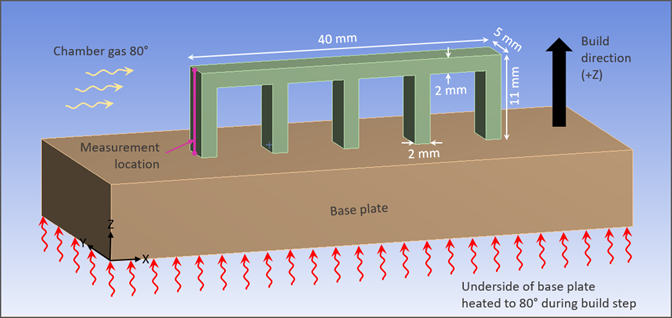

Figure 180: Schematic

Schematic

Analysis Assumptions and Modeling Notes

Additive in Mechanical

The simulation includes a build step and a cooldown step. Heat is applied at a constant temperature (80°C) to the underside of the base plate during the build step. Room-temperature convection is applied to that same surface during the cooldown step. Throughout the simulation the base plate is anchored by a fixed boundary condition on the underside of the plate. Ansys predefined material properties are used for Inconel 718 from the Additive Manufacturing Materials library. Deflection results from the vertical centerline of an end post are verified by comparing to experimental data. The analysis is performed using a Cartesian mesh.

Build SettingsBuild ConditionsCooldown Conditions
Deposition/Powder Layer Thickness = 0.03 mmPreheat Temperature = 80°CRoom Temperature = 22°C
Hatch Spacing = 0.1 mmGas Temperature = 80°CGas Temperature = 22°C
Scan Speed = 1000 mm/secPowder Temperature = 80°CPowder Temperature = 22°C
Dwell Time = 10 secGas Convection Coeff = 0.00001 W/mm2°CGas Convection Coeff = 0.00001 W/mm2°C
Dwell Time Multiple = 1Powder Convection Coeff = 0.00001 W/mm2°CPowder Convection Coeff = 0.00001 W/mm2°C
Number of heat sources = 1Powder Property Factor = 0.01Powder Property factor = 0.01
Mesh and Material Settings
Element size = 0.1 mm Cartesian mesh
Stretch factor in x = 2
Stretch factor in y = 2
Projection Factor = 0.8

Additive Print

The Assumed Strain simulation uses linear elastic material behavior.

Mesh and Material Settings
Voxel size = 0.1 mm
Strain Scaling Factor = 2.079
Yield Strength = 726 MPa
Elastic Modulus = 161 GPa

Results Comparison

The distortion in the X direction as calculated by both solvers confirms the measured results which show that the joining of the posts causes significant distortion toward the center of the model.

Additive in Mechanical

ResultsTargetMechanicalError (%)
X Deformation at Z = 5.5 mm0.3590.34713-3.3064
X Deformation Maximum0.6940.68183-1.7540

Figure 181: Comparison of Predicted X Deflection Along Edge to Measured Data - Additive in Mechanical

Comparison of Predicted X Deflection Along Edge to Measured Data - Additive in Mechanical

Additive Print

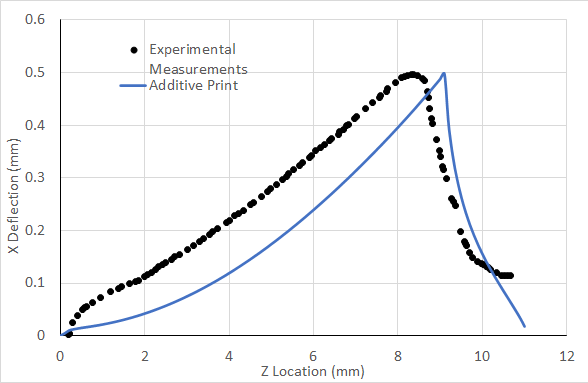

Figure 182: Comparison of Predicted X Deflection Along Edge to Measured Data - Additive Print

Comparison of Predicted X Deflection Along Edge to Measured Data - Additive Print
