Geometry Fidelity

Geometry Fidelity ensures the nodes of the mesh lie on the scoped geometry including midside nodes for quadratic elements. Geometry Fidelity adds constraint on the mesh which cause deterioration in quality in some situations due to the forced projection. In such cases, you should refine the mesh at the same locations with local size control.

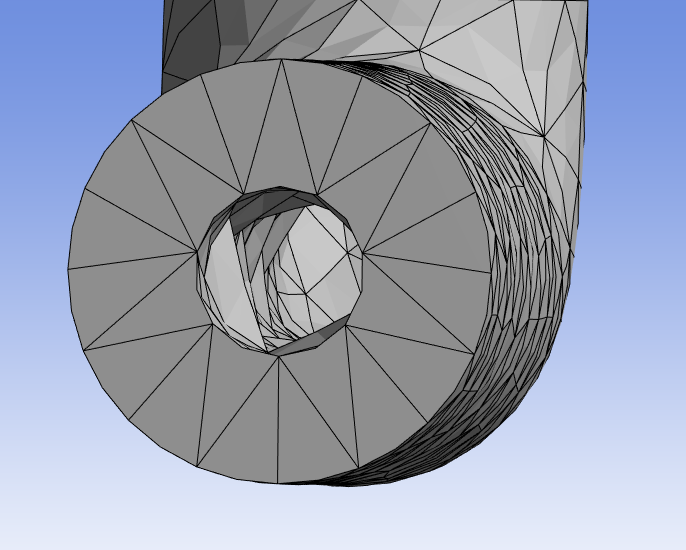

The following image shows the face without Geometry Fidelity

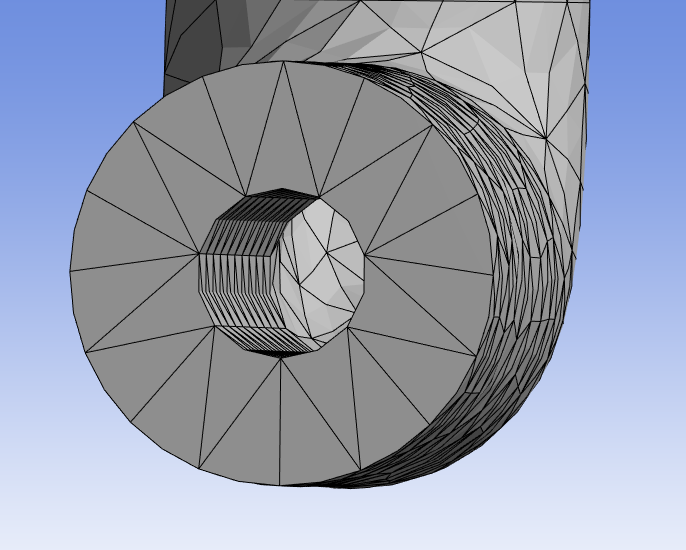

The following image shows the face with Geometry Fidelity

To access Geometry Fidelity,

On the Tree Outline, right-click Mesh and click Insert > Geometry Fidelity.

Or

Right-click on the Geometry window, click Insert > Geometry Fidelity.

Geometry Fidelity Details view has the following options:

Scope

  • Scoping Method: Allows you to scope geometry faces or named selection. The default value is Geometry Selection.

    • Geometry Selection: Allow you to scope the faces. When you select Geometry Selection, the Geometry allows you to select the faces from the Geometry window.

    • Named Selection: Allow you to scope faces grouped under a named selection.

Definition

Suppressed: Allows you to suppress the Geometry Fidelity control, when set to Yes. The default value is No.
