Crystallographic Point Group

Point Group is available for the Anisotropic Elasticity, Anisotropic Relative Permeability, and Piezoelectric Matrix material models. Using Point Group, you can select from the following symmetry operations:

  • Unspecified (default)

  • 32

  • 3m

  • 4mm

  • 6mm

  • 23

  • 43mm

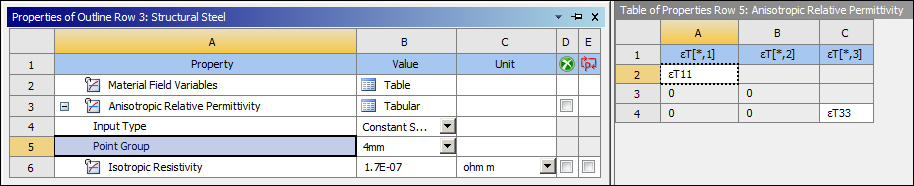

Based on your selection, a corresponding table/matrix populates automatically with the appropriate data, as shown here for Anisotropic Relative Permeability using the 4mm option.
